ZDT6790

Type Designator: ZDT6790

SMD Transistor Code: T6790

Material of Transistor: Si

Polarity: NPN*PNP

Maximum Collector Power Dissipation (Pc): 2.75 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 100 MHz

Forward Current Transfer Ratio (hFE), MIN: 300

Noise Figure, dB: -

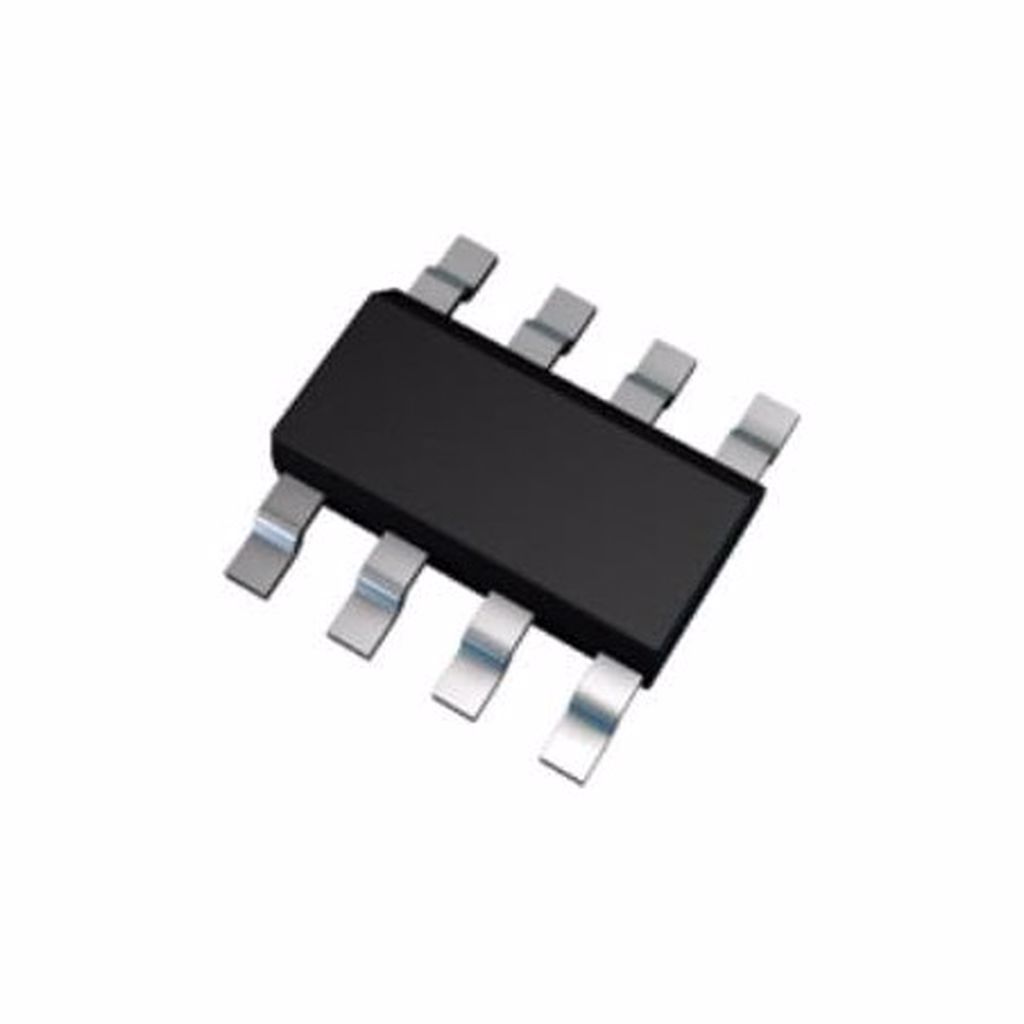

Package: SM-8
