TPC8108 MOSFET

Type Designator: TPC8108

Type of Transistor: MOSFET

Type of Control Channel: P -Channel

Maximum Power Dissipation (Pd): 1.9 W

Maximum Drain-Source Voltage |Vds|: 30 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Drain Current |Id|: 11 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 7 nS

Drain-Source Capacitance (Cd): 600 pF

Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm

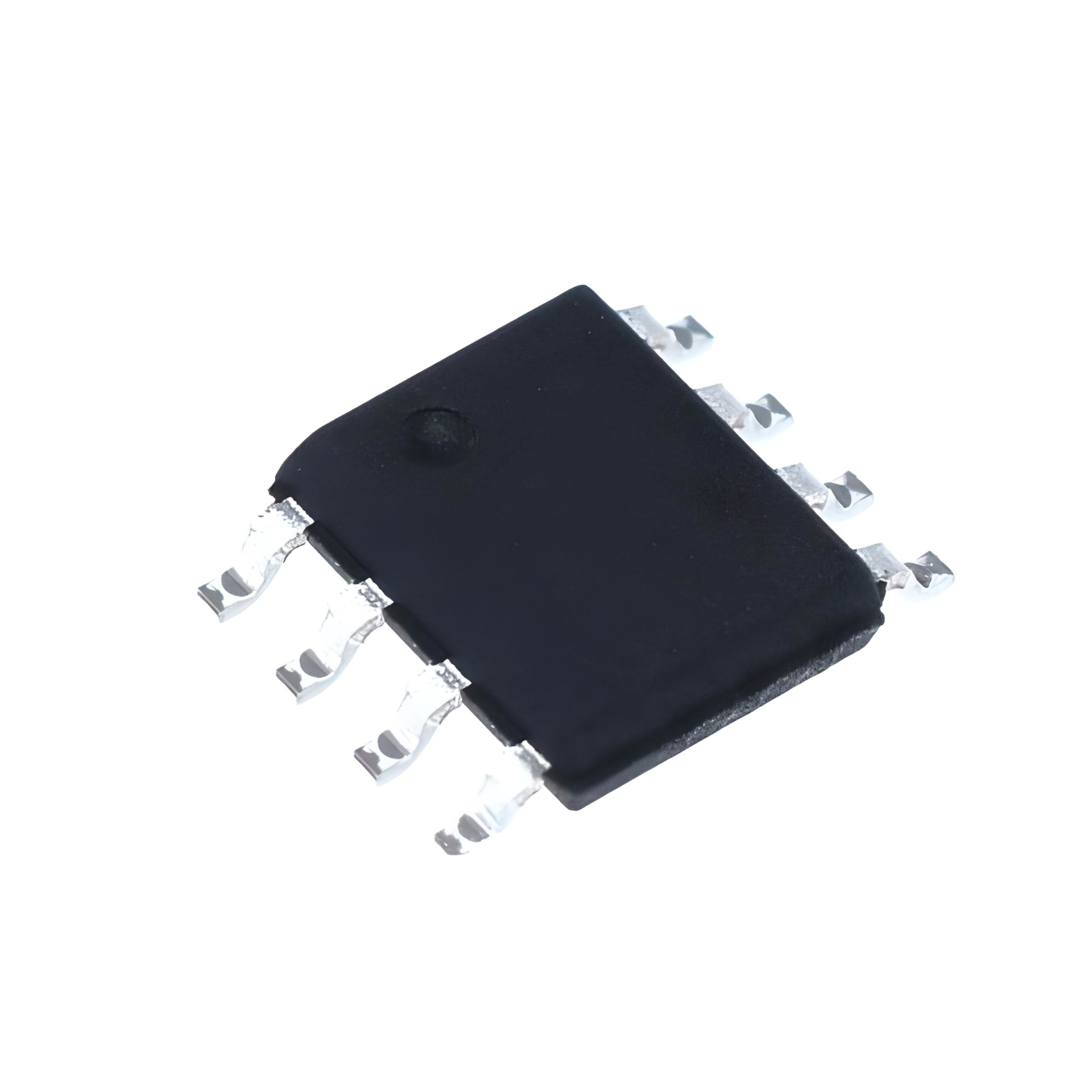

Package: SOP8
