BC847BW

Type Designator: BC847BW

SMD Transistor Code: 1F_1F-_1Fp_1Fs_1Ft_1FW_K1F_K1R

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 300 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 290

Noise Figure, dB: -

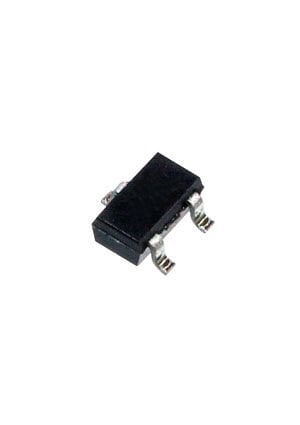

Package: SOT323
