2SK3700 MOSFET

Type Designator: 2SK3700

Marking Code: K3700

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 150 W

Maximum Drain-Source Voltage |Vds|: 900 V

Maximum Gate-Source Voltage |Vgs|: 30 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V

Maximum Drain Current |Id|: 5 A

Maximum Junction Temperature (Tj): 150 °C

Total Gate Charge (Qg): 28 nC

Rise Time (tr): 30 nS

Drain-Source Capacitance (Cd): 100 pF

Maximum Drain-Source On-State Resistance (Rds): 2.5 Ohm

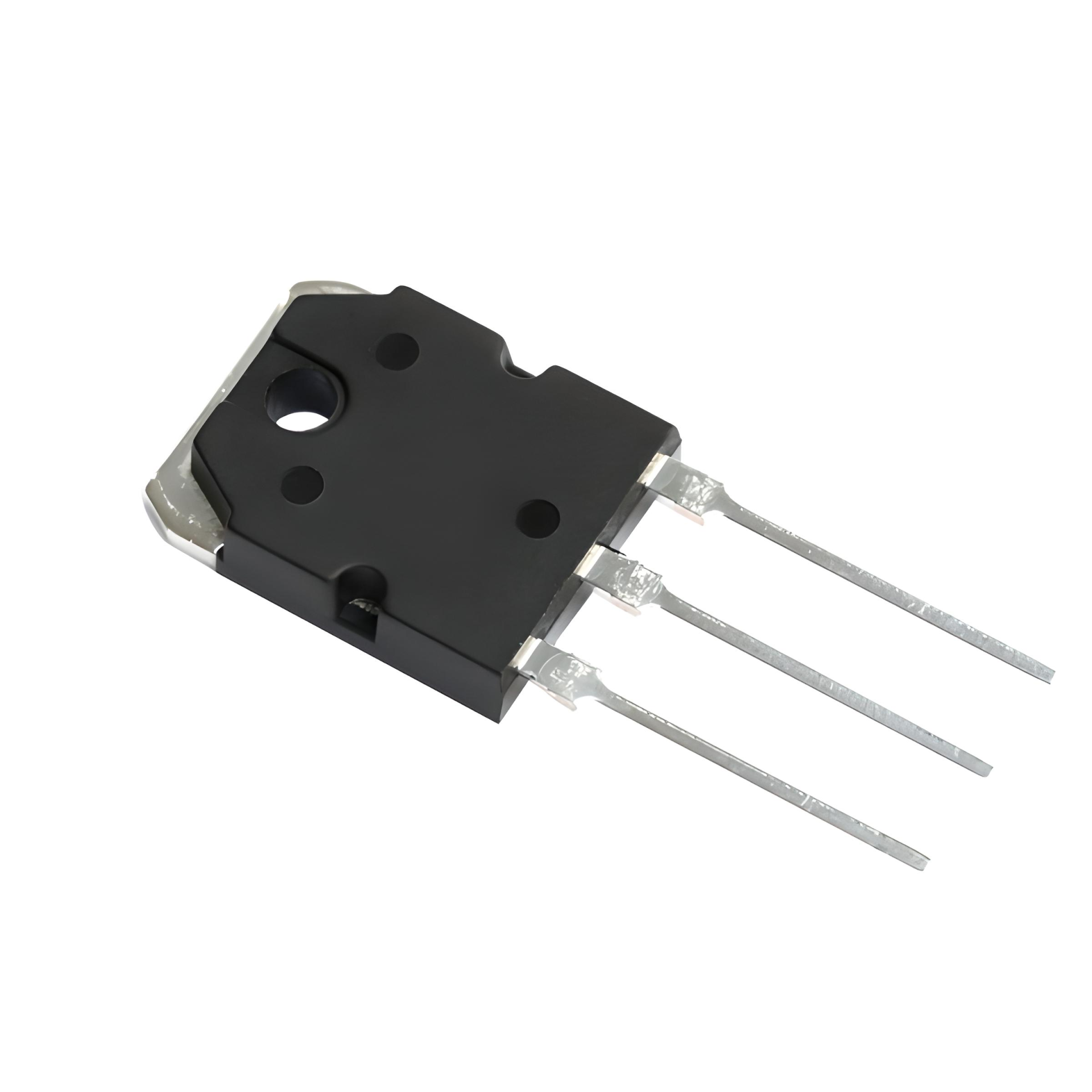

Package: SC65 TO3P
