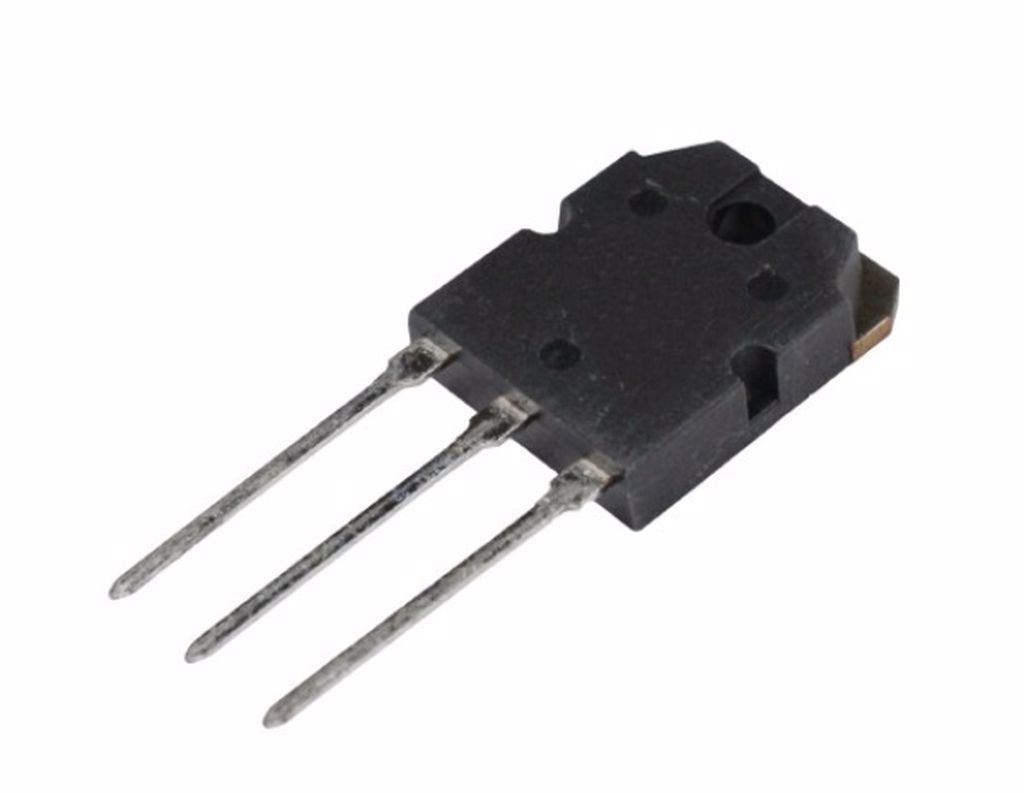

2SK2728 TO-3P 500V 18A 150W N-CHANNEL MOSFET TRANSISTOR
Kalan Stok : 6
92,67 TL
2SK2728 TO-3P 500V 18A 150W N-CHANNEL MOSFET TRANSISTOR
2SK2728
Type Designator: 2SK2728
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 120 nS
Drain-Source Capacitance (Cd): 630 pF
Maximum Drain-Source On-State Resistance (Rds): 0.45 Ohm
Package: TO3P
