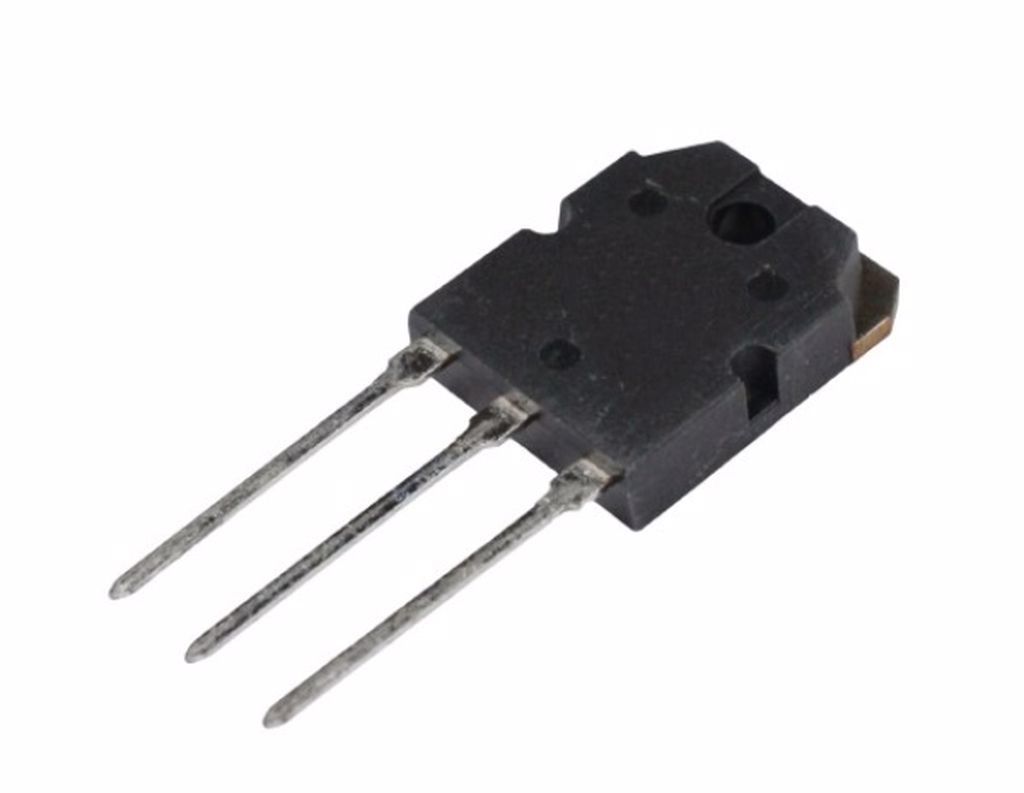

2SK1671 TO-3P 30A 250V 125W N-CHANNEL MOSFET TRANSISTOR
Kalan Stok : 11
290,27 TL
2SK1671 TO-3P 30A 250V 125W N-CHANNEL MOSFET TRANSISTOR
2SK1671
Type Designator: 2SK1671
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 30 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 170 nS
Drain-Source Capacitance (Cd): 1250 pF
Maximum Drain-Source On-State Resistance (Rds): 0.095 Ohm
Package: TO3P
