2SK1296

Type Designator: 2SK1296

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 75 W

Maximum Drain-Source Voltage |Vds|: 60 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Drain Current |Id|: 30 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 125 nS

Drain-Source Capacitance (Cd): 1230 pF

Maximum Drain-Source On-State Resistance (Rds): 0.024 Ohm

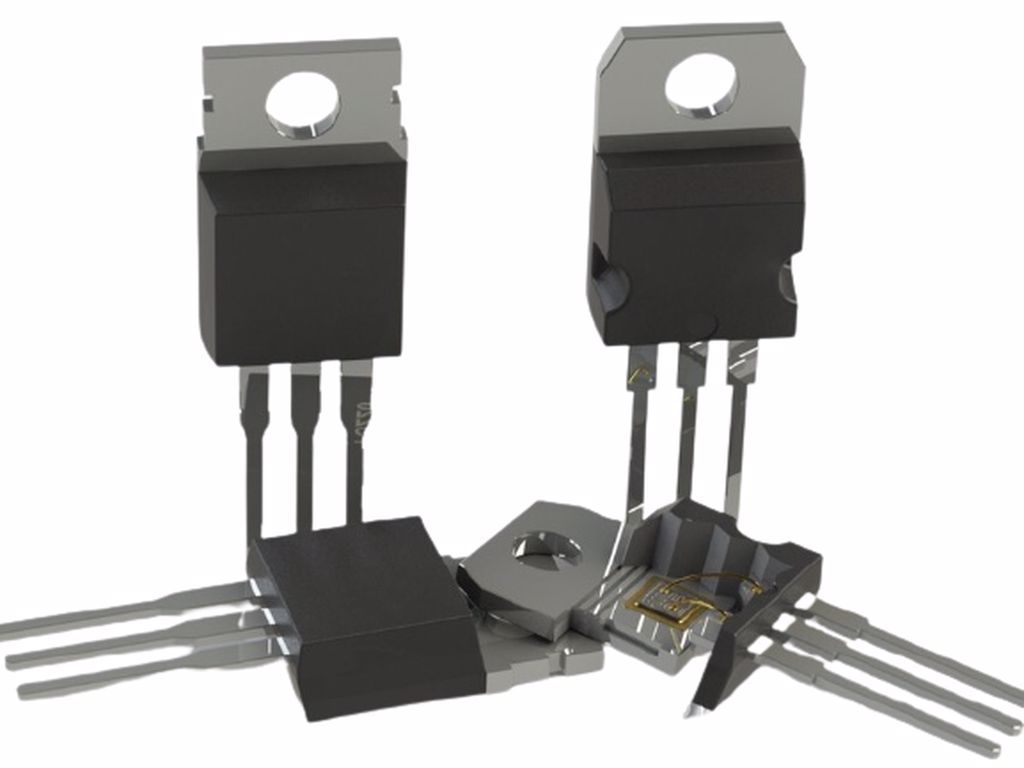

Package: TO220AB
