2SD2553

Type Designator: 2SD2553

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 50 W

Maximum Collector-Base Voltage |Vcb|: 1700 V

Maximum Collector-Emitter Voltage |Vce|: 600 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 8 A

Transition Frequency (ft): 2 MHz

Forward Current Transfer Ratio (hFE), MIN: 8

Noise Figure, dB: -

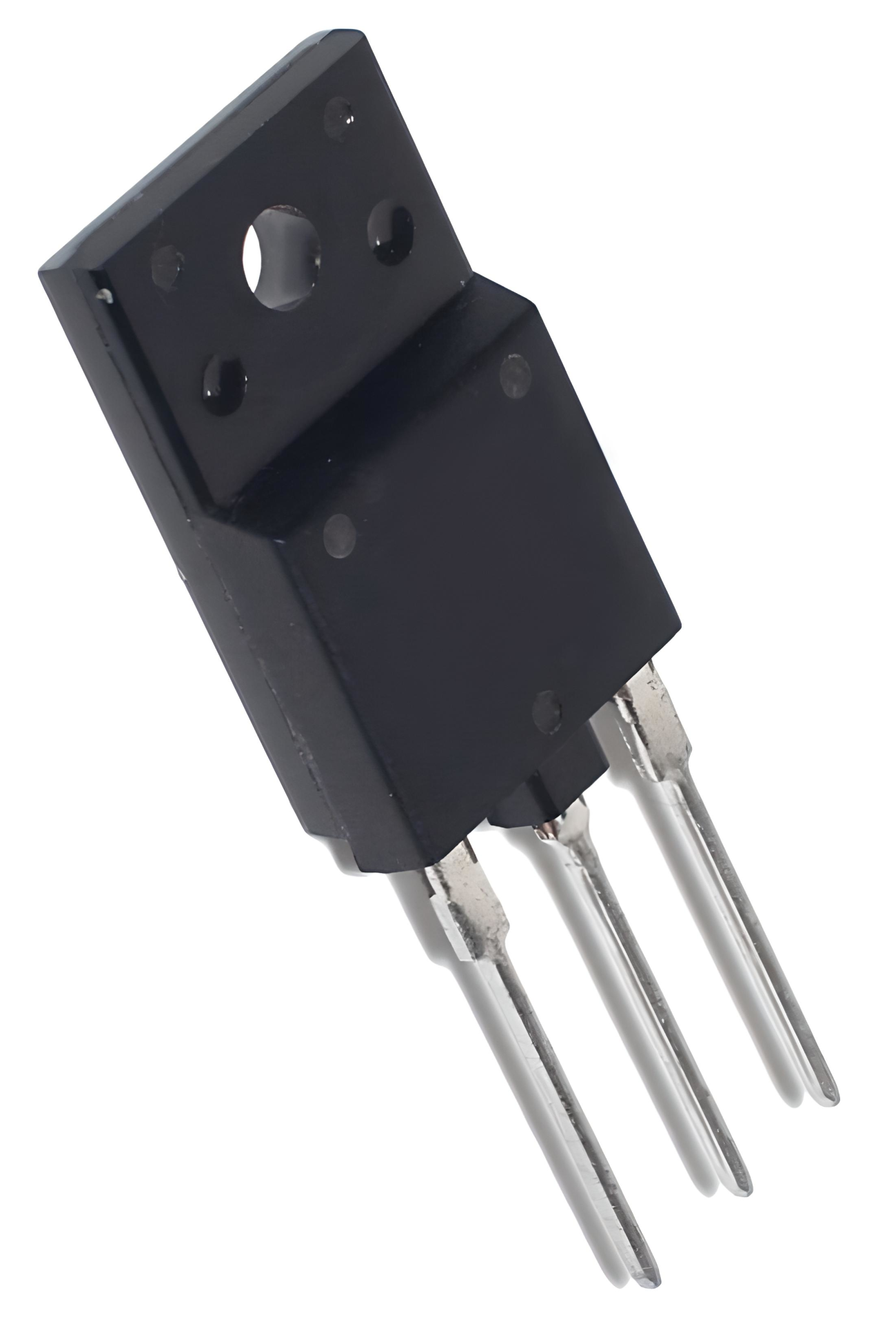

Package: TO3PHIS
