2SD1559

Type Designator: 2SD1559

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 100 W

Maximum Collector-Base Voltage |Vcb|: 100 V

Maximum Collector-Emitter Voltage |Vce|: 100 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 20 A

Max. Operating Junction Temperature (Tj): 150 °C

Forward Current Transfer Ratio (hFE), MIN: 12000

Noise Figure, dB: -

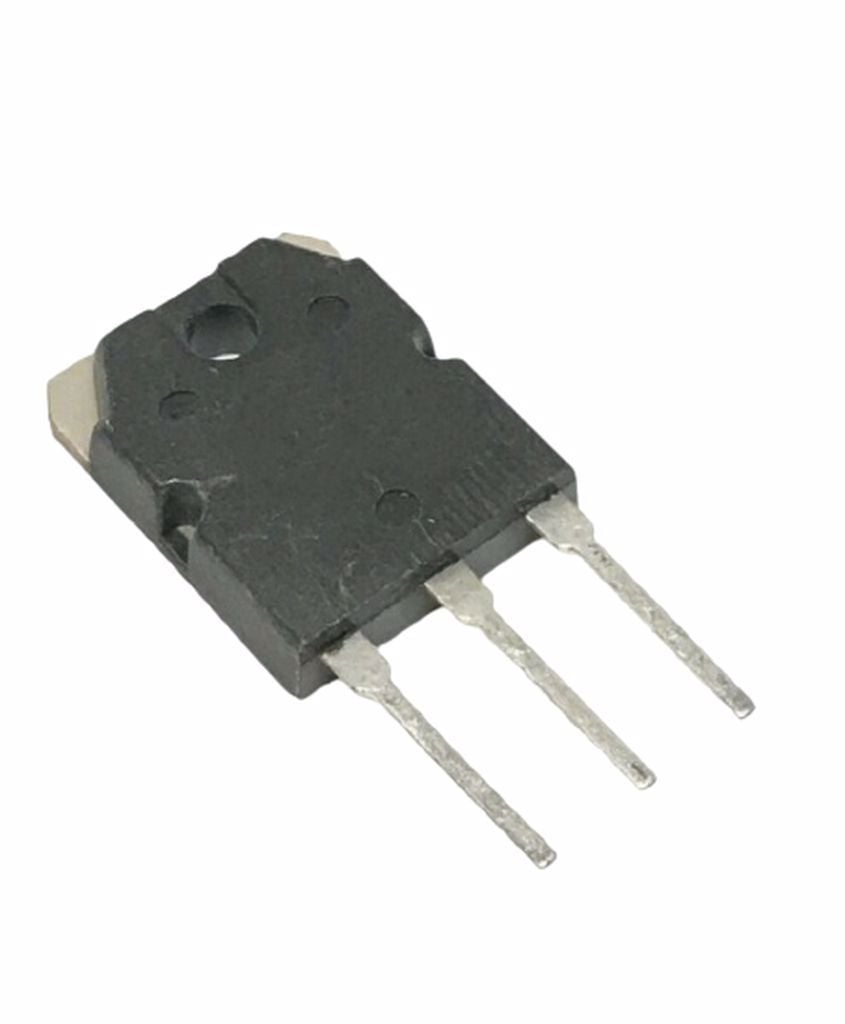

Package: TO3P
