2SC1907

Type Designator: 2SC1907

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 19 V

Maximum Emitter-Base Voltage |Veb|: 2 V

Maximum Collector Current |Ic max|: 0.05 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 550 MHz

Collector Capacitance (Cc): 2 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

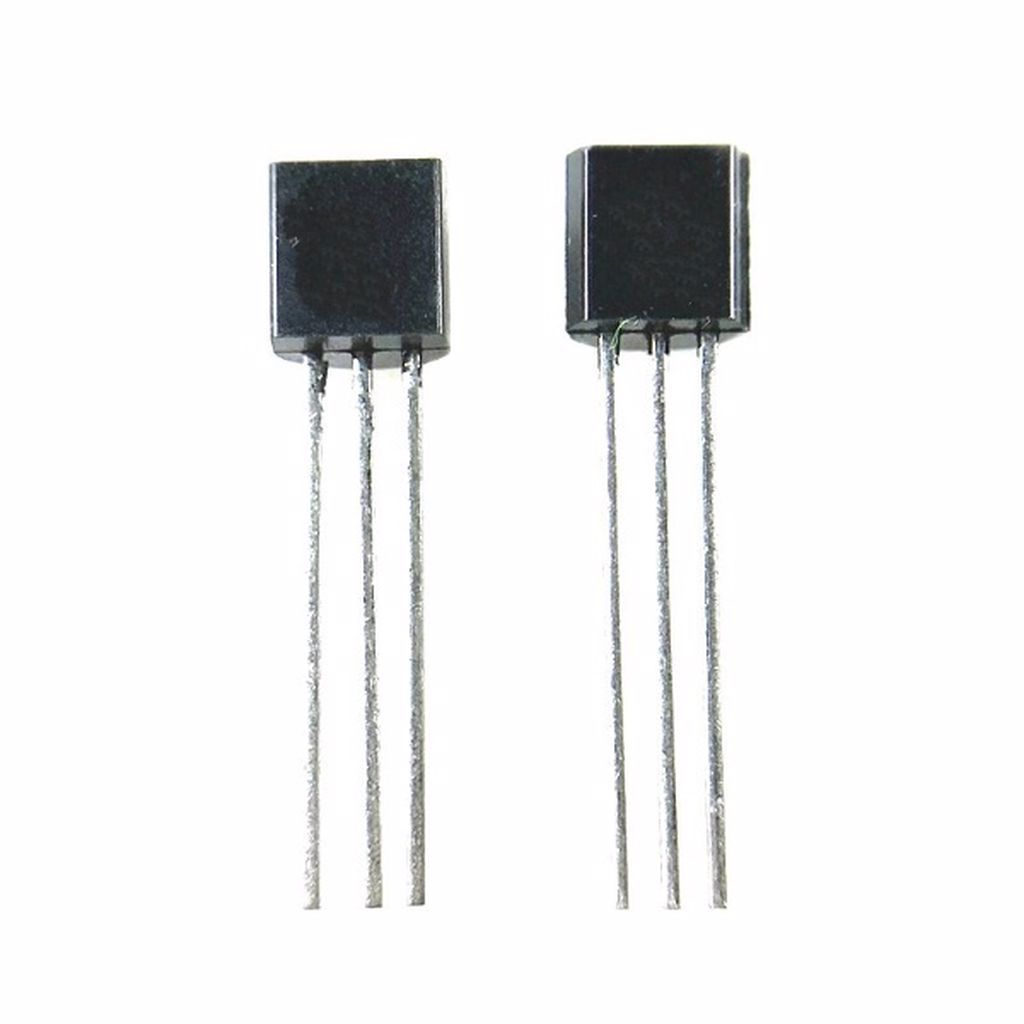

Package: TO92
