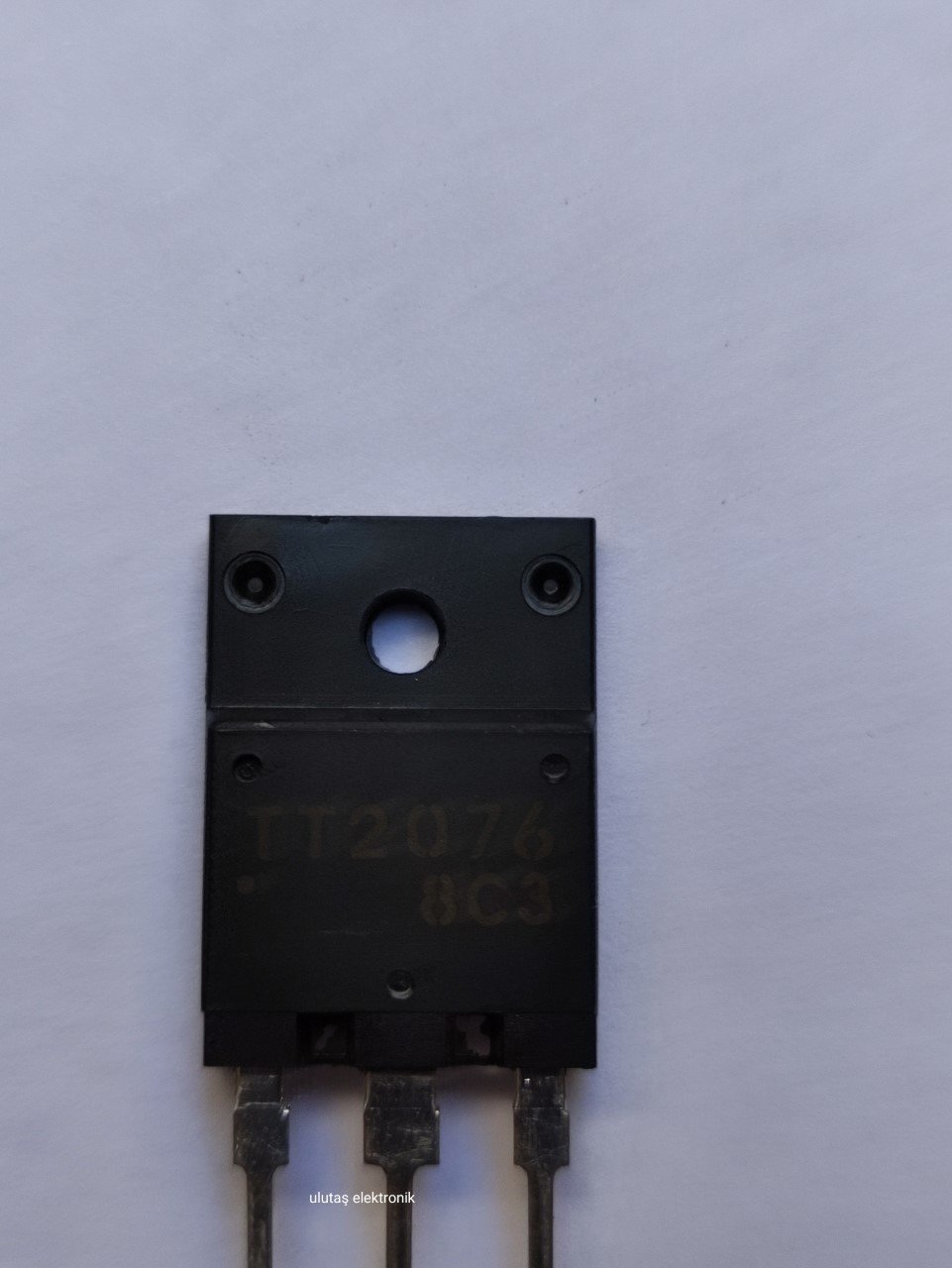

TT2076 TO-3PMLH 8A 800V TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
0,78 USD + KDV
*3,00 TL den başlayan taksitlerle!
32,30 TL
TT2076 Datasheet
Type Designator: TT2076
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 5
Package: TO-3PMLH
