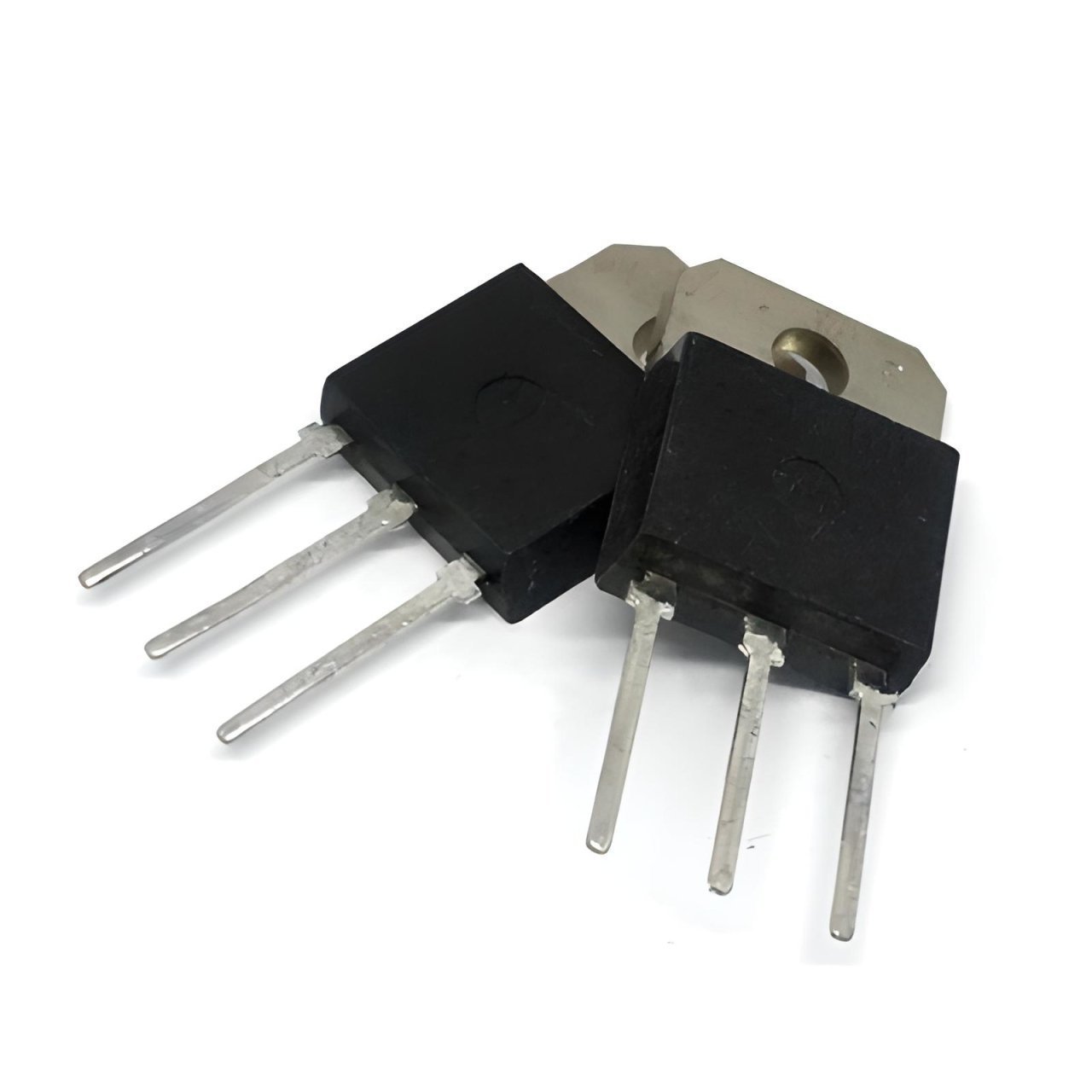

TIP3055 TO-218 15A 100V 90W NPN TRANSISTOR - ONLİNE ÖZEL FİYAT
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
1,24 USD + KDV
*4,77 TL den başlayan taksitlerle!
51,35 TL
TIP3055
Type Designator: TIP3055
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 70 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO218
