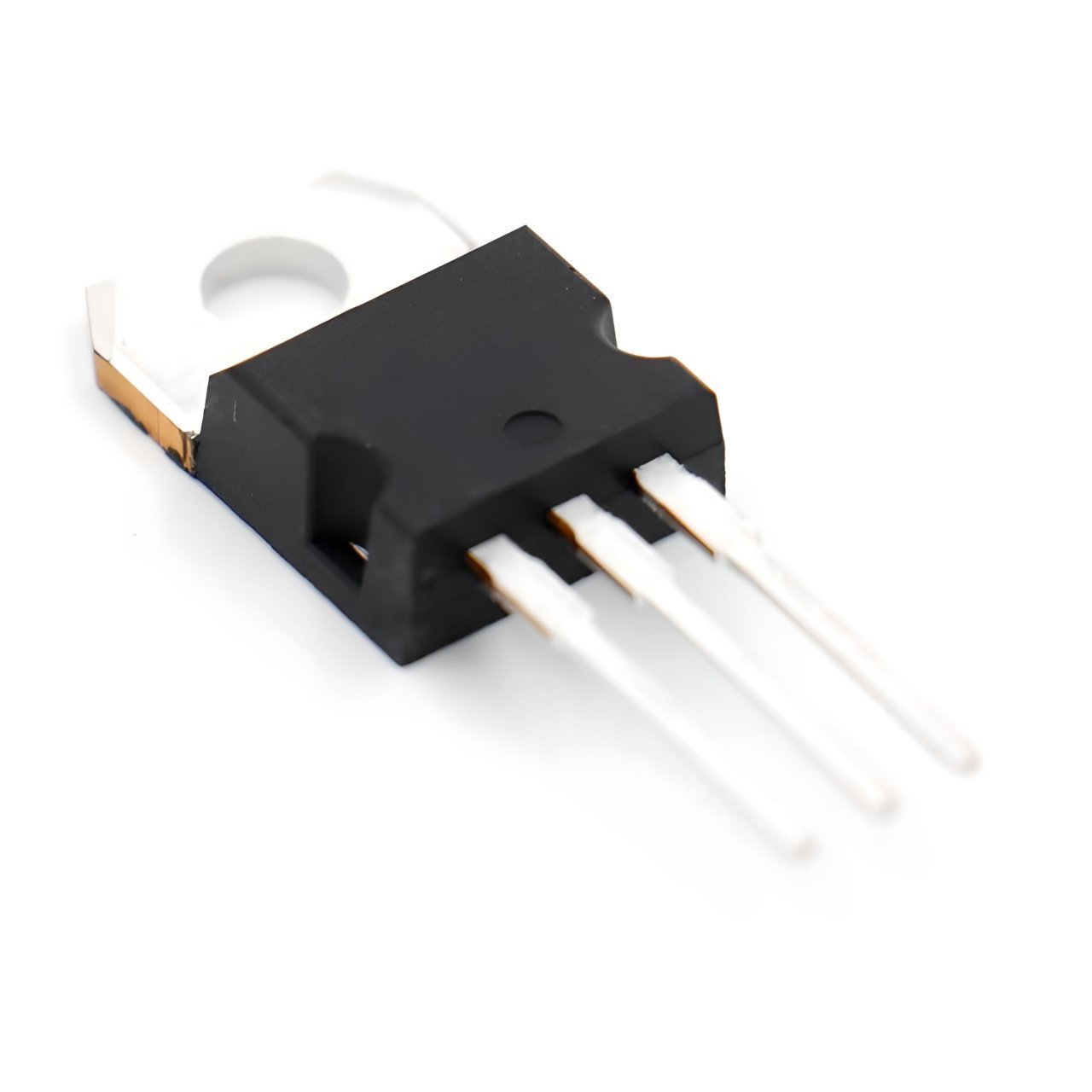

TIP132 TO-220 8A 100V 70W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
50 Adet
Fiyat
0,52 USD + KDV
*2,00 TL den başlayan taksitlerle!
21,54 TL
TIP132 TO-220 8A 100V 70W NPN DARLINGTON TRANSISTOR
TIP132
Type Designator: TIP132
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 70 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 1000
Package: TO220
