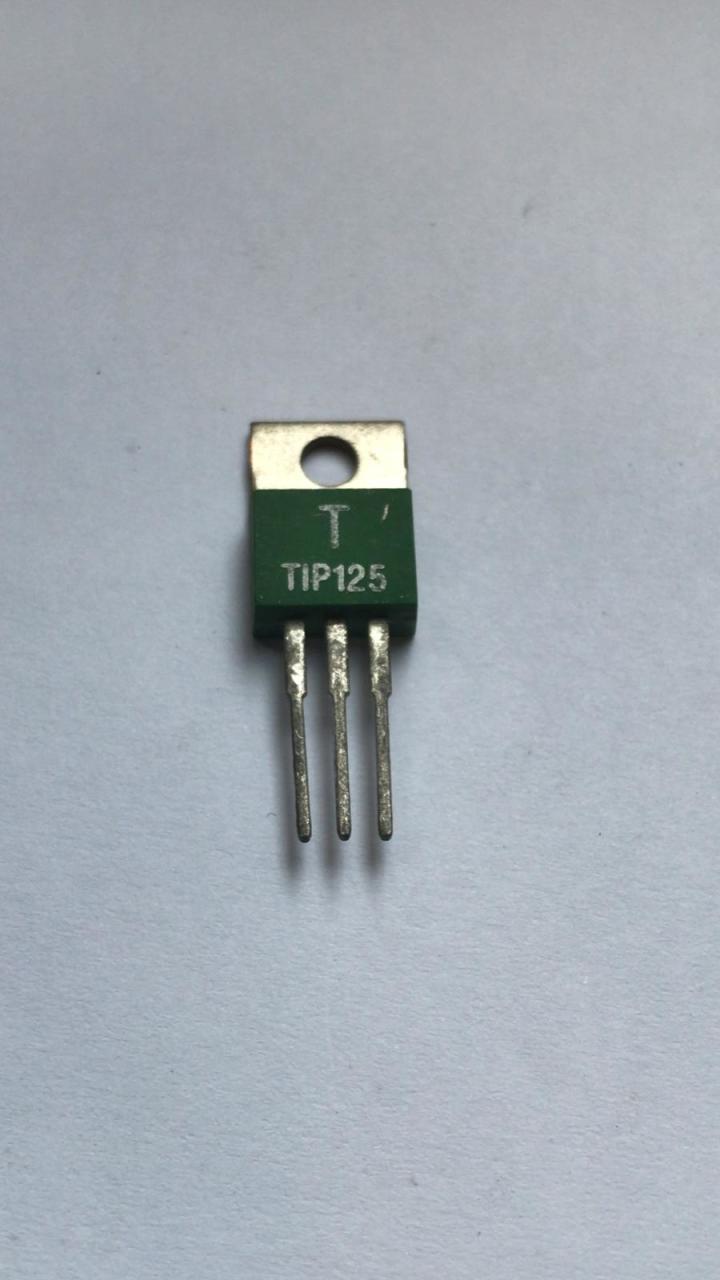

TIP125 TO-220 5A 60V 65W PNP DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1 Adet
Fiyat
0,39 USD + KDV
*1,50 TL den başlayan taksitlerle!
16,15 TL
TIP125 TO-220 5A 60V 65W PNP DARLINGTON TRANSISTOR
TIP125
Type Designator: TIP125
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 1000
Package: TO220
Bu ürüne ilk yorumu siz yapın!
