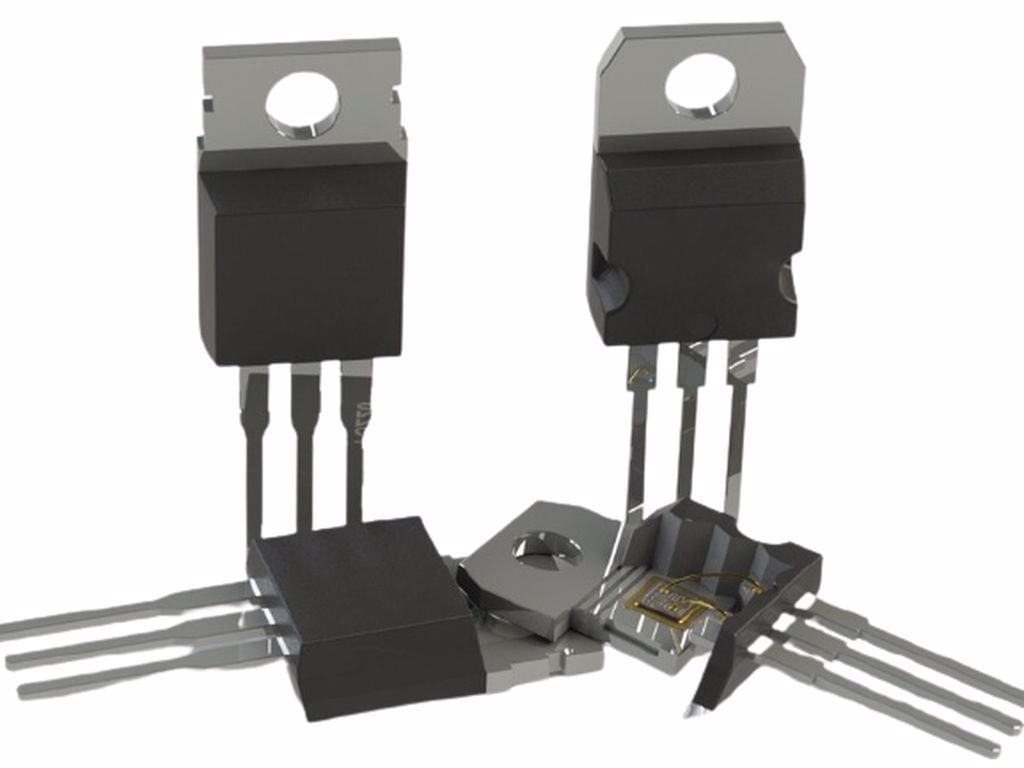

TIP112 TO-220 2A 100V 50W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
40 Adet
Fiyat
0,70 USD + KDV
*2,70 TL den başlayan taksitlerle!
28,99 TL
TIP112 TO-220 2A 100V 50W NPN DARLINGTON TRANSISTOR
TIP112
Type Designator: TIP112
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 750
Package: TO220
Bu ürüne ilk yorumu siz yapın!
