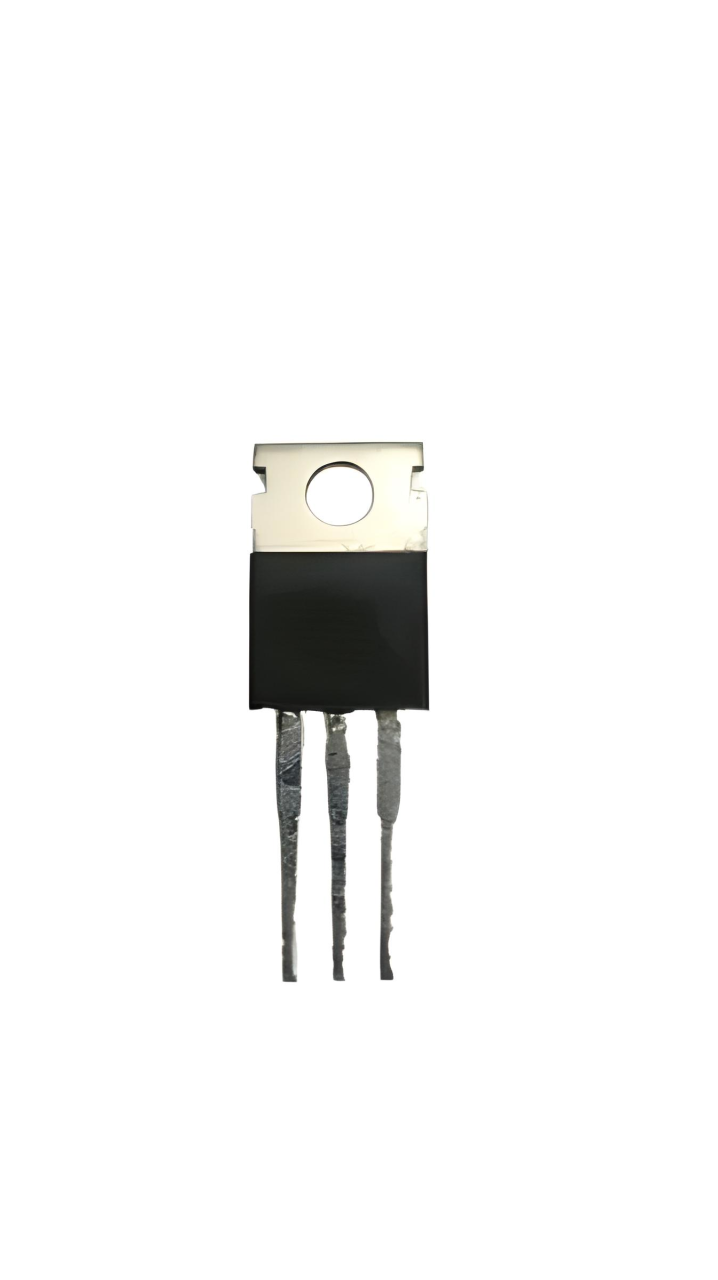

TIC236D TO-220 12A 400V TRIAC

TIC226D TRIAC

Type: Triac

Maximum peak gate power (P_GM): 2.2 W

Maximum repetitive peak and off-state voltage (V_DRM): 400 V

Maximum RMS on-state current (I_T(RMS)): 8 A

Non repetitive surge peak on-state current (I_TSM): 70 A

Critical rate of rise of off-state voltage (dV/dt): 100 V/µs

Maximum operating junction and storage temperature range (T_stg, T_j): -40..110 °C

Junction to ambient thermal resistance (R_TH(j-a)): 62.5 K/W

Junction to case thermal resistance (R_TH(j-c)): 1.8 K/W

Triggering gate voltage (V_GT): 0.8 V

Peak on-state voltage drop (V_TM): 1.6 V

Triggering gate current (I_GT): 20 mA

Holding current (I_H): 9 mA

Package: TO‑220
