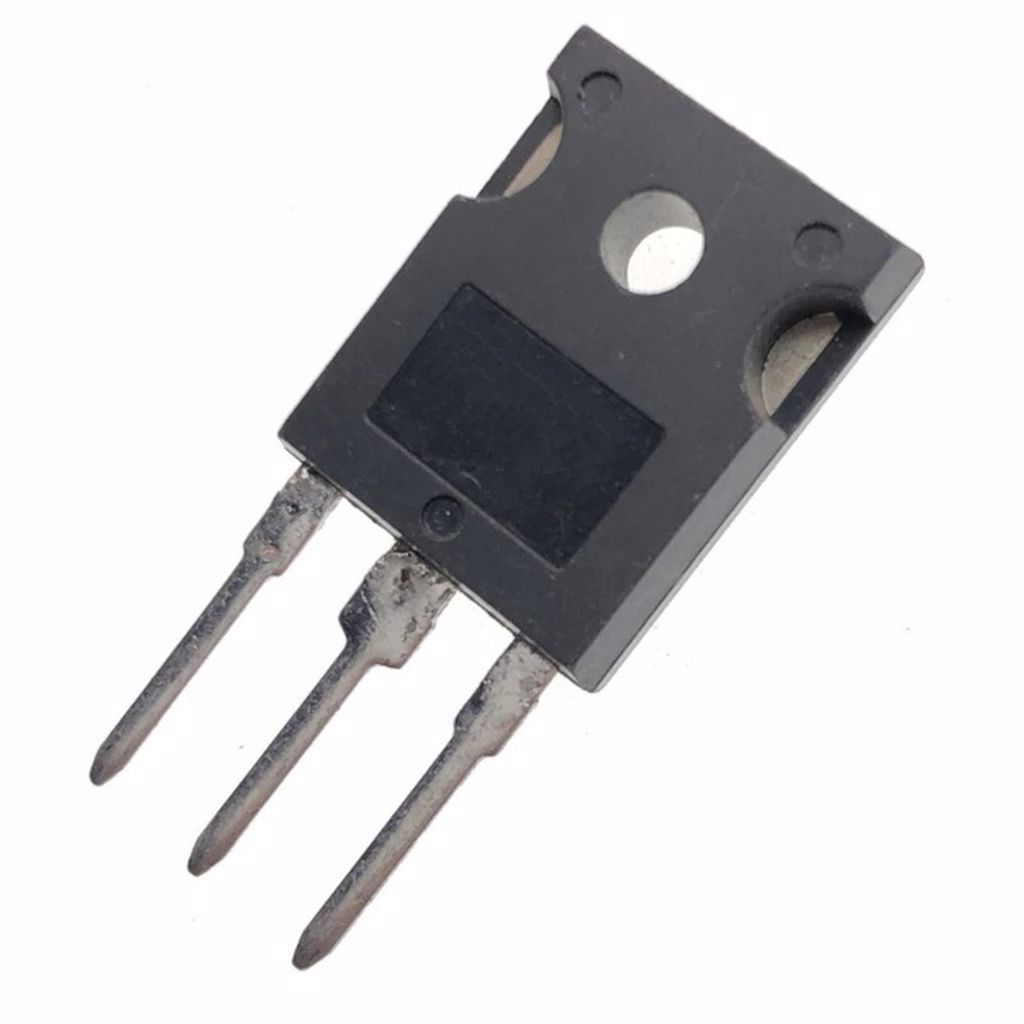

STW45NM50 TO-247 45A 500V 417W 0.1Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
17 Adet
Fiyat
5,25 USD + KDV
*20,21 TL den başlayan taksitlerle!
217,42 TL
STW45NM50 TO-247 45A 500V 417W 0.1Ω N-CHANNEL MOSFET
STW45NM50 MOSFET
Type Designator: STW45NM50
Marking Code: W45NM50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 417 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 45 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 87 nC
Rise Time (tr): 107.5 nS
Drain-Source Capacitance (Cd): 610 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: TO247
