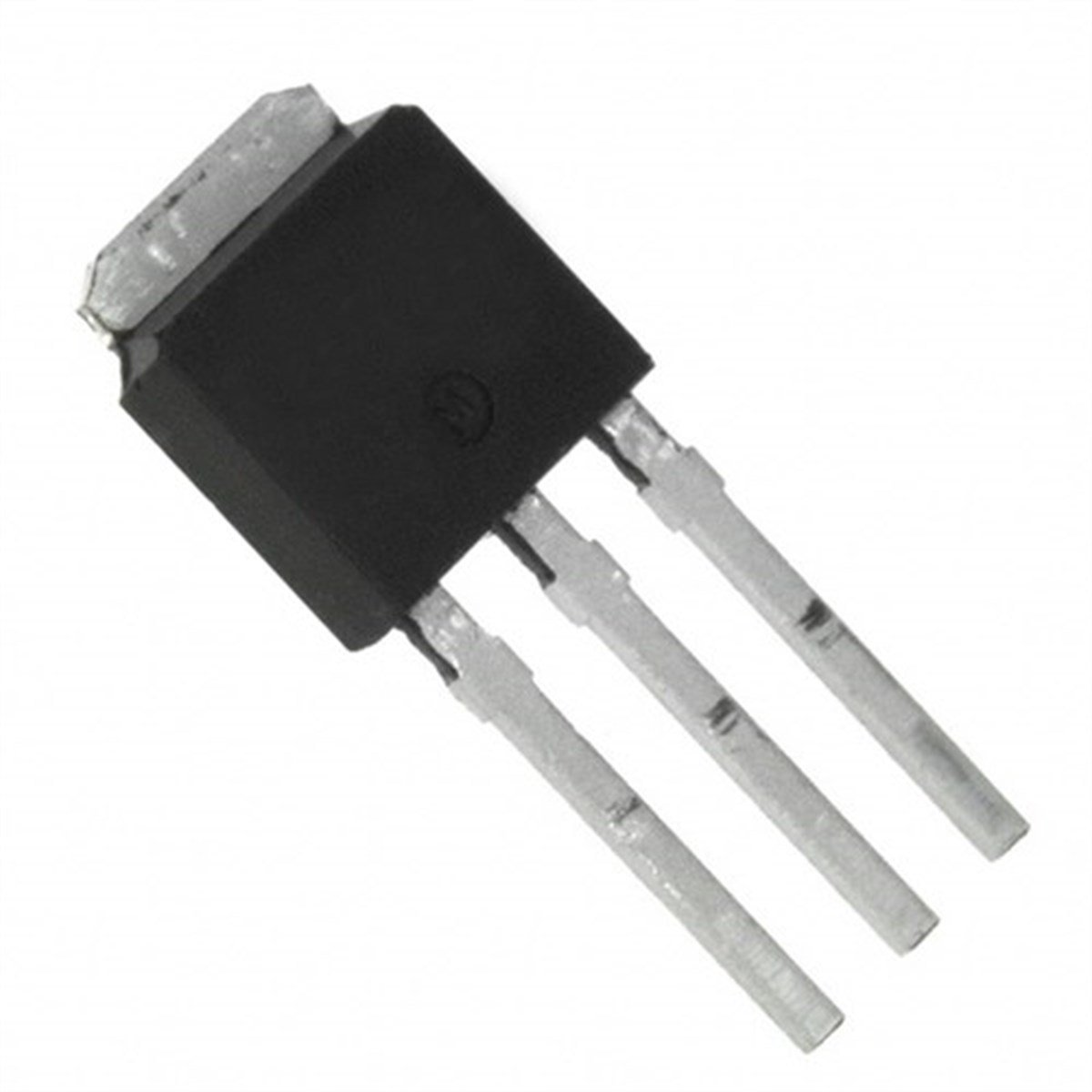

STK0160LM TO-251 600V 0.4A MOSFET
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
1,65 USD + KDV
*6,35 TL den başlayan taksitlerle!
68,33 TL
STK0160
Type Designator: STK0160
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 0.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 4.5 nC
Rise Time (tr): 27 nS
Drain-Source Capacitance (Cd): 20 pF
Maximum Drain-Source On-State Resistance (Rds): 9.4 Ohm
Package: MPT
