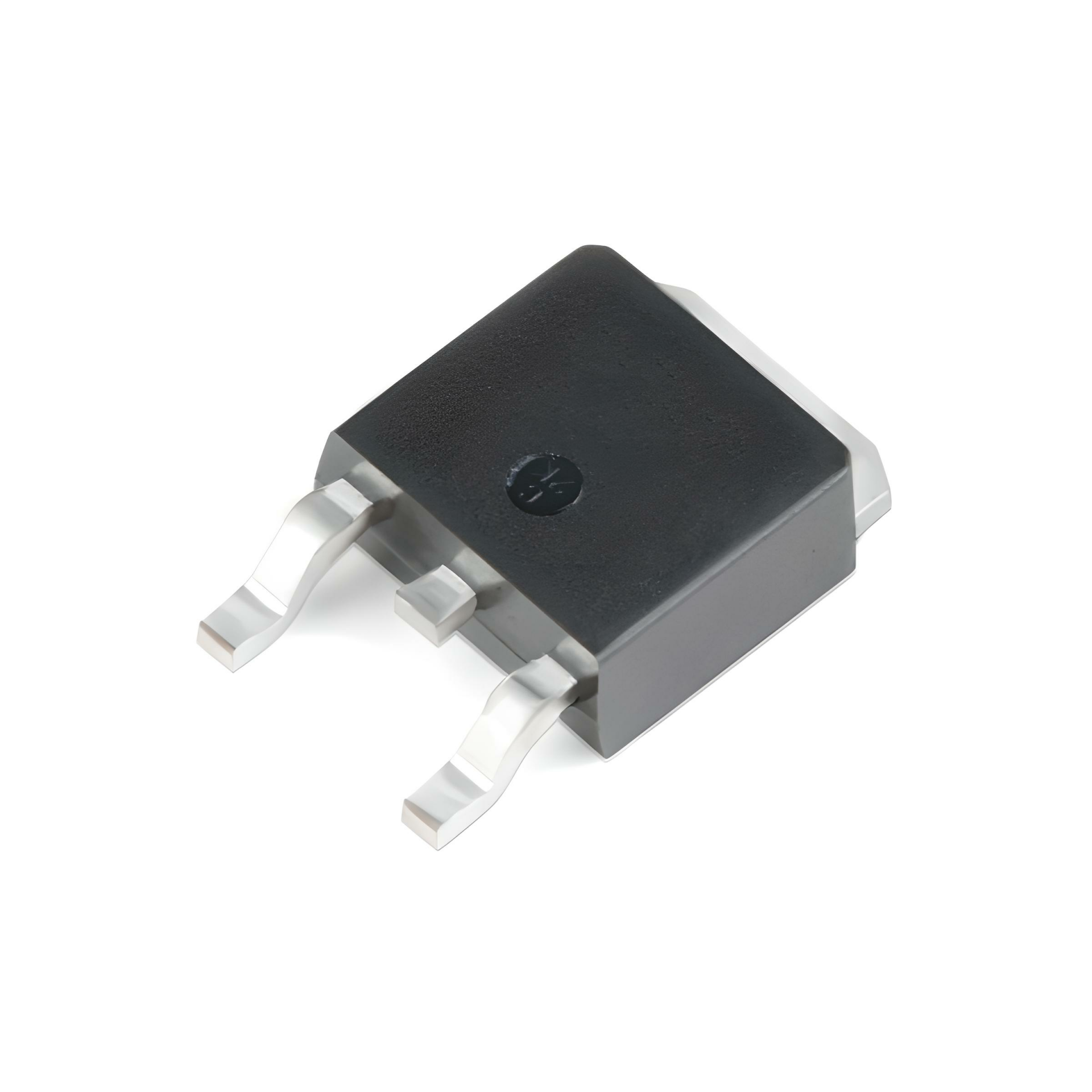

STD5NM50T4 TO-252 7.5A 500V 100W 0.8OHM N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
60 Adet
Fiyat
2,60 USD + KDV
*10,01 TL den başlayan taksitlerle!
107,68 TL
STD5NM50T4 TO-252 7.5A 500V 100W 0.8OHM N-CHANNEL MOSFET
STD5NM50T4 MOSFET
Type Designator: STD5NM50T4
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 7.5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 13 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 88 pF
Maximum Drain-Source On-State Resistance (Rds): 0.8 Ohm
Package: DPAK
