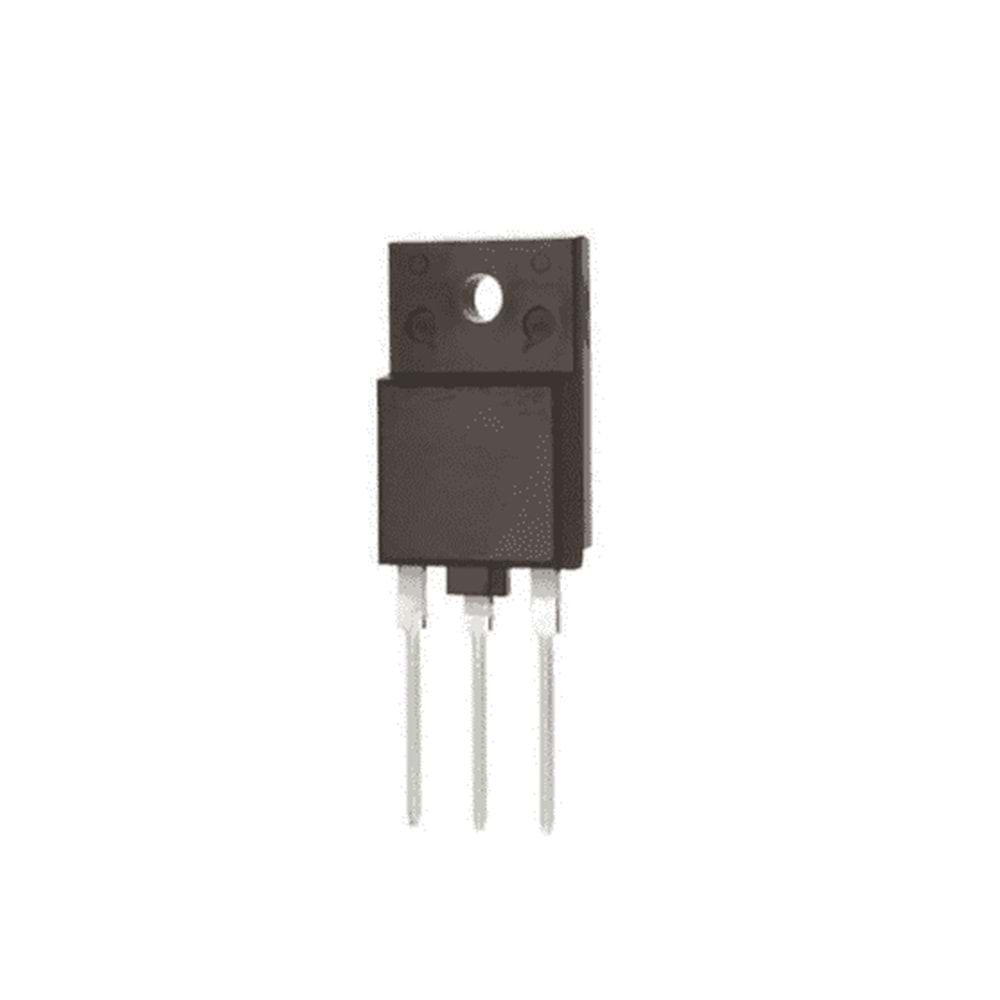

ST1802 - (MD1802FX) TO-3PF 10A 1500V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
2,50 USD + KDV
*9,59 TL den başlayan taksitlerle!
103,19 TL
MD1802FX Datasheet, Equivalent, Cross Reference Search
Type Designator: MD1802FX
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 57 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 5.5
Package: TO3PF
