SSH5N90 TO-3P 5A 900V 150W 2.5Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
158 Adet
Fiyat
1,30 USD + KDV
*5,01 TL den başlayan taksitlerle!
53,84 TL
SSH5N90 TO-3P 5A 900V 150W 2.5Ω N-CHANNEL MOSFET
SSH5N90 MOSFET
Type Designator: SSH5N90
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 110 nC
Rise Time (tr): 90 nS
Drain-Source Capacitance (Cd): 140 pF
Maximum Drain-Source On-State Resistance (Rds): 2.5 Ohm

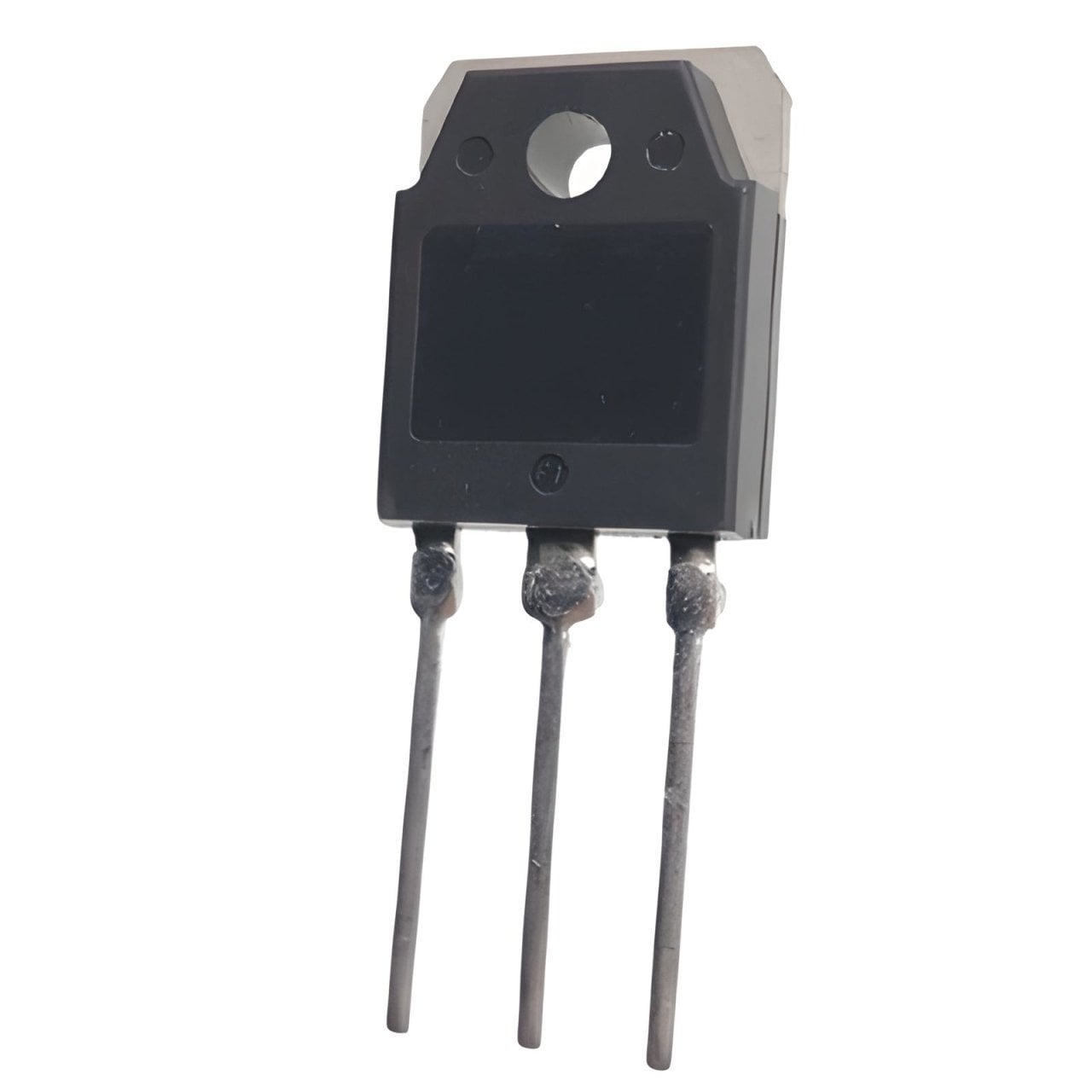

Package: TO-3P
