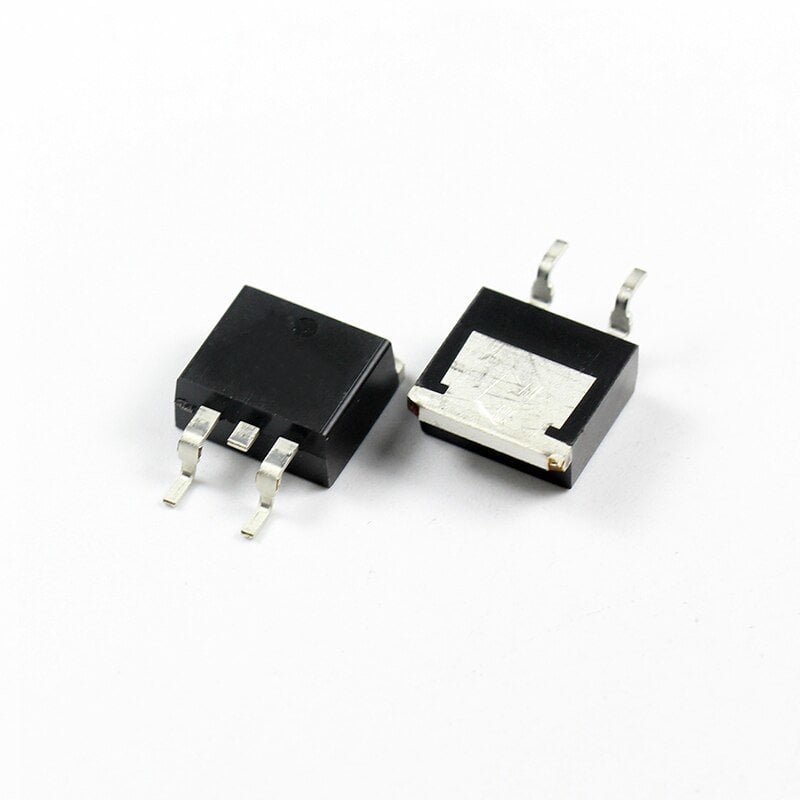

RJP30H2ADPE-00-J3 TO-263 35A 360V N-CHANNEL IGBT TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
540 Adet
Fiyat
1,90 USD + KDV
*7,29 TL den başlayan taksitlerle!
78,42 TL
RJP30H2ADPE-00-J3 TO-263 35A 360V N-CHANNEL IGBT TRANSISTOR
RJP30H2A IGBT
Type Designator: RJP30H2A
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 60
Maximum Collector-Emitter Voltage |Vce|, V: 360
Collector-Emitter saturation Voltage |Vcesat|, V: 1.9
Maximum Gate-Emitter Voltage |Veg|, V: 30
Maximum Collector Current |Ic|, A: 35
Maximum Junction Temperature (Tj), °C: 150
Rise Time, nS: 180
Maximum Collector Capacity (Cc), pF: 60
Package: TO263
