PDTC143ET

Type Designator: PDTC143ET

SMD Transistor Code: *02_p02_t02_W02

Material of Transistor: Si

Polarity: Pre-Biased-NPN

Built in Bias Resistor R1 = 4.7 kOhm

Built in Bias Resistor R2 = 4.7 kOhm

Typical Resistor Ratio R1/R2 = 1

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 10 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Collector Capacitance (Cc): 2.5 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

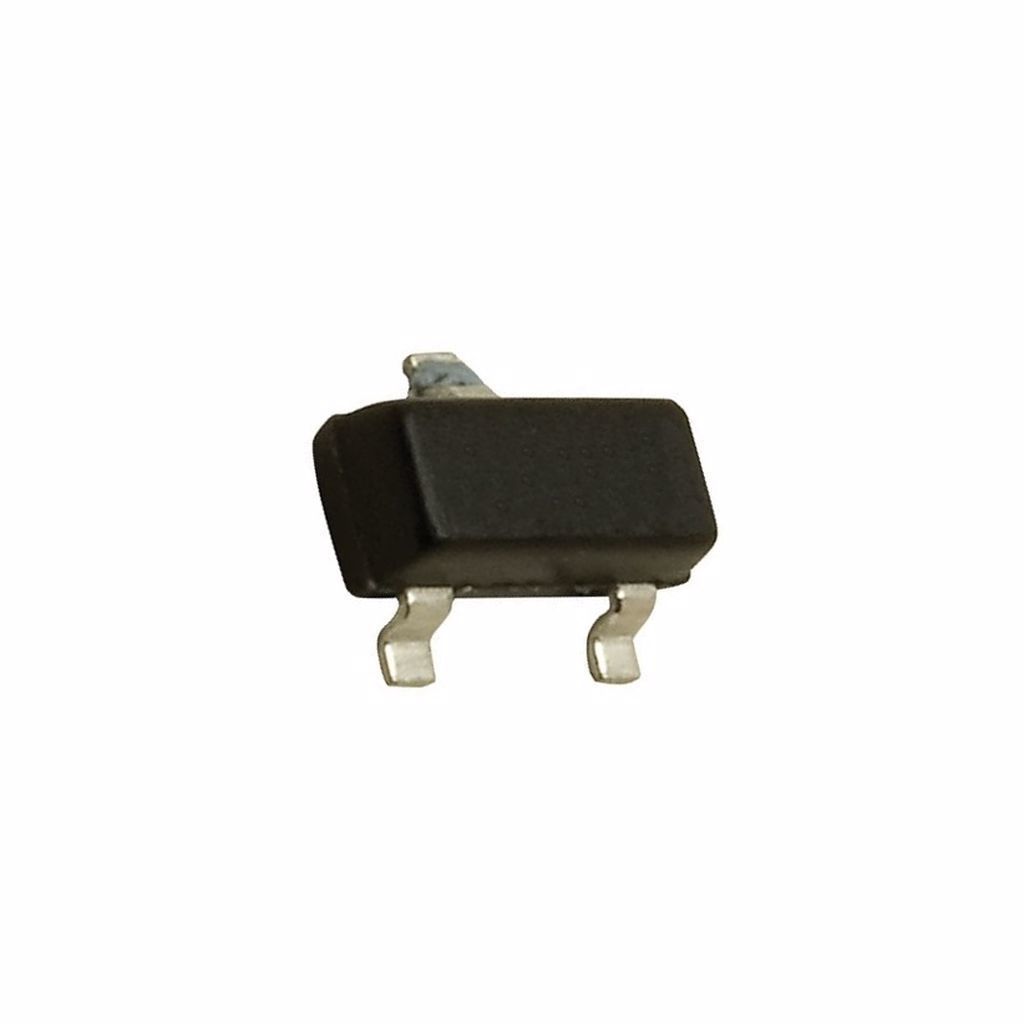

Package: SOT23
