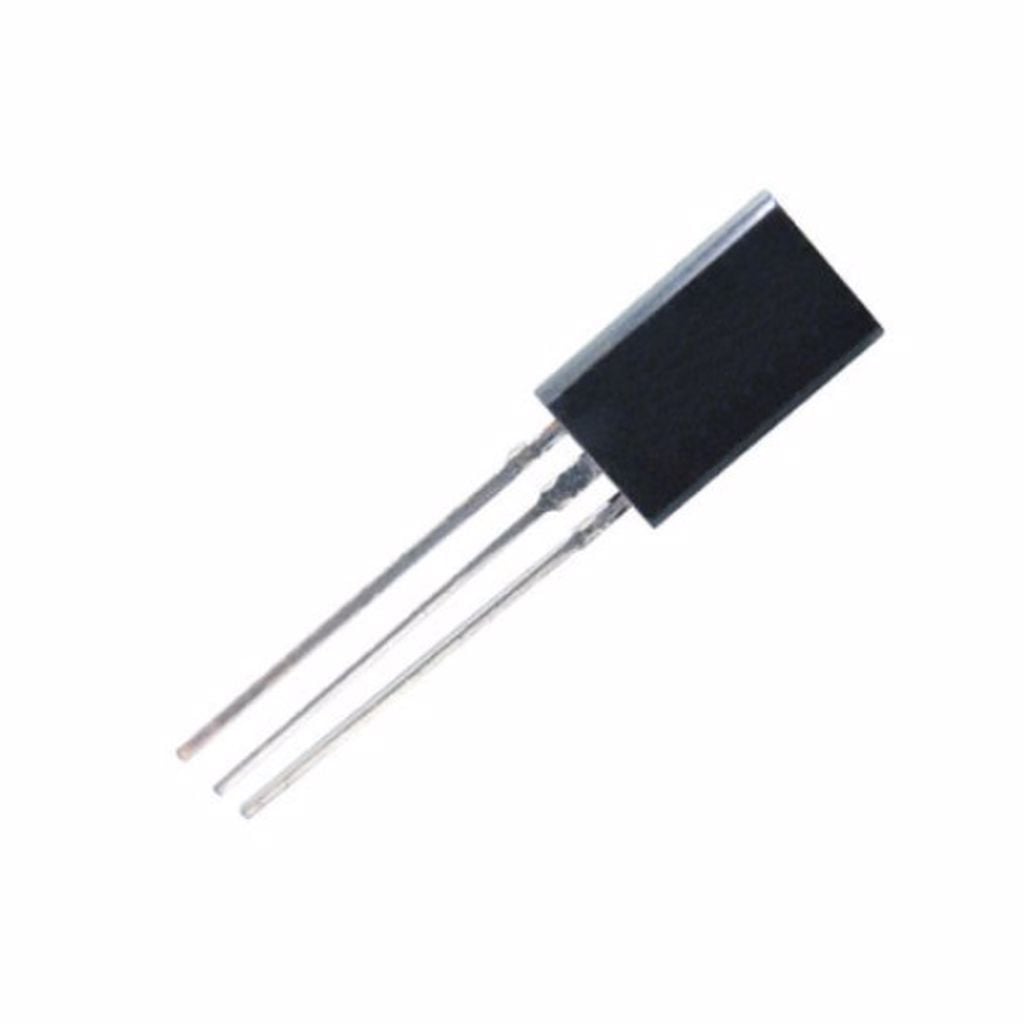

MPSW42 TO-92L 500MA 300V NPN BIPOLAR TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,35 USD + KDV
*1,35 TL den başlayan taksitlerle!
14,49 TL
MPSW42 TO-92L 500MA 300V NPN BIPOLAR TRANSISTOR
MPSW42
Type Designator: MPSW42
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO92
Bu ürüne ilk yorumu siz yapın!
