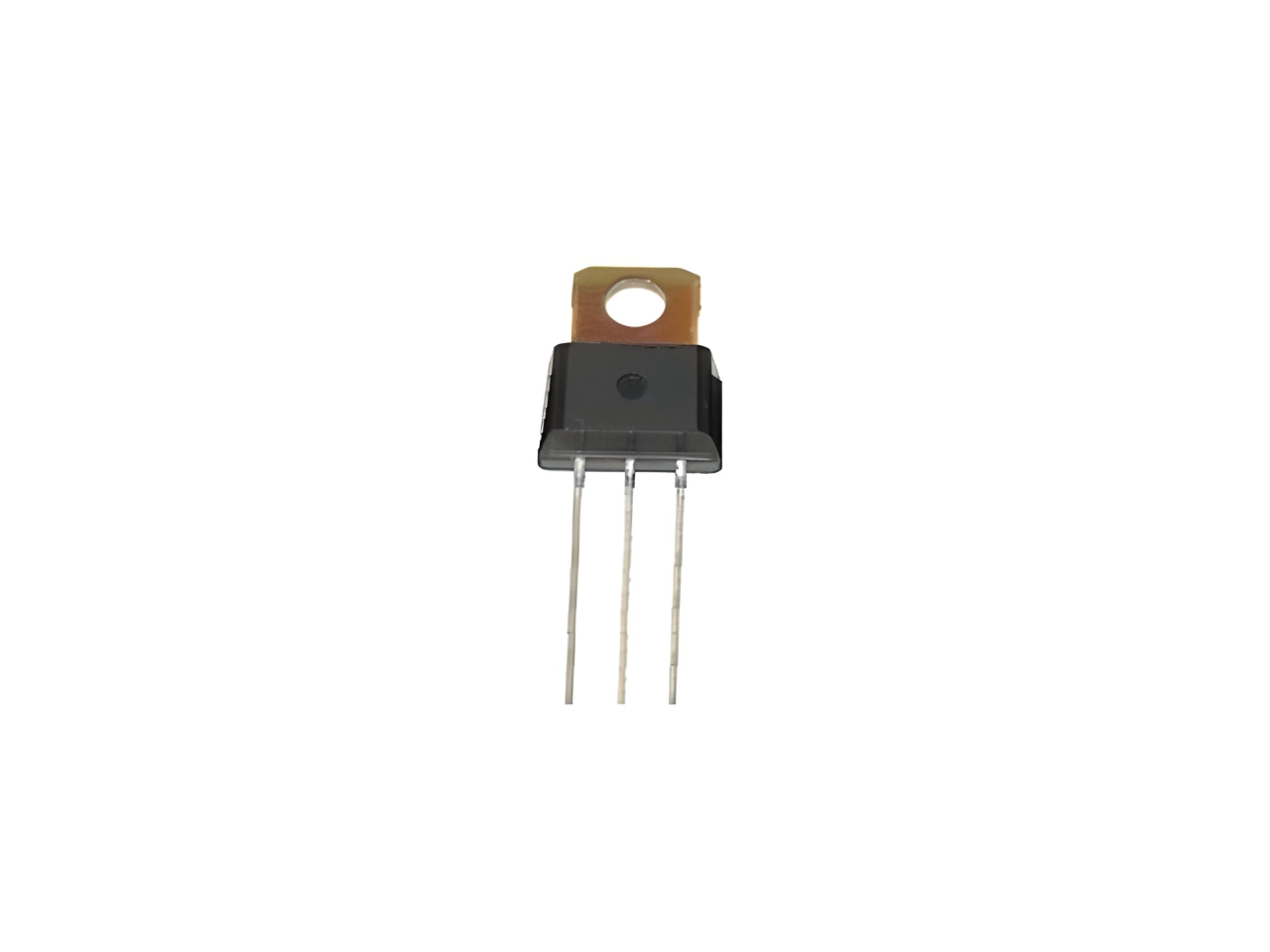

MPSU51 X17 2A 40V PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
414 Adet
Fiyat
0,28 USD + KDV
*1,08 TL den başlayan taksitlerle!
11,60 TL
MPSU51
Type Designator: MPSU51
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: X17
