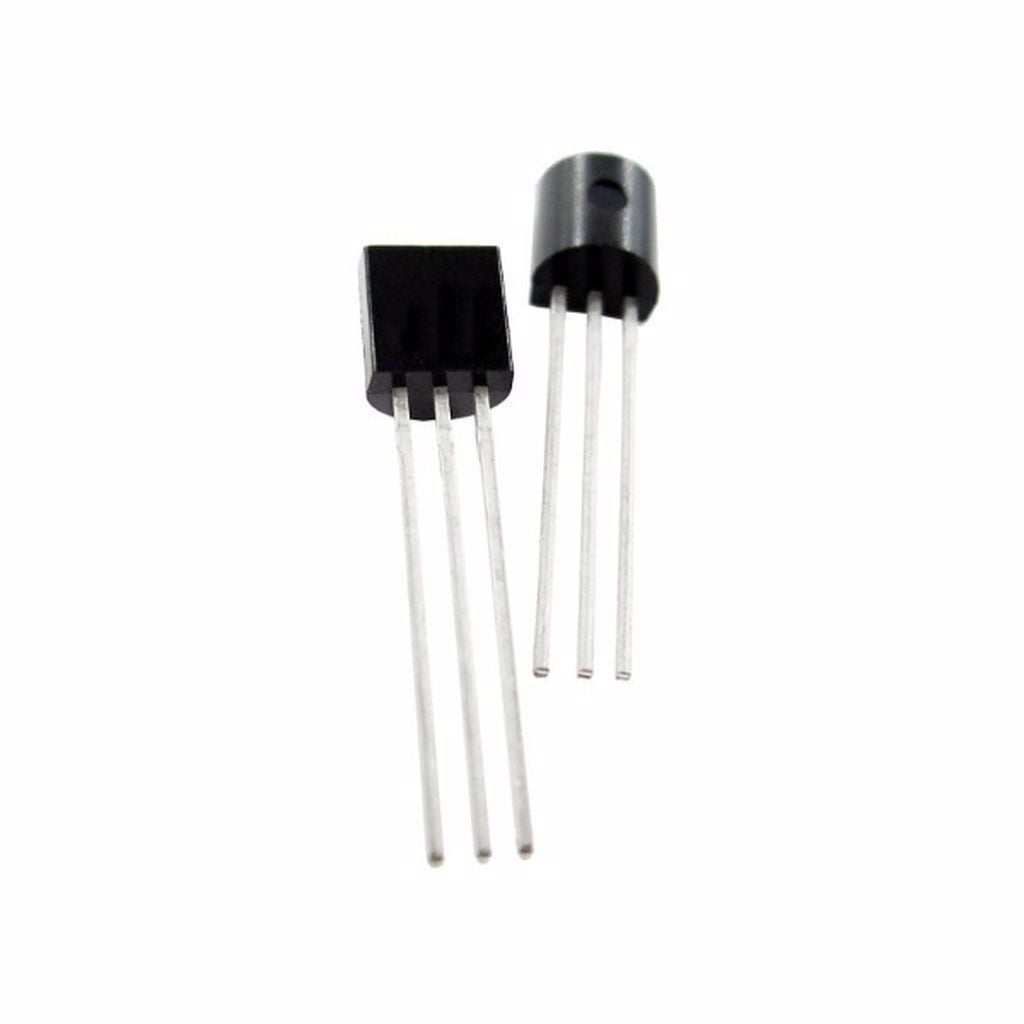

MPSA55 TO-92 500MA 60V PNP BIPOLAR TRANSISTOR
MPSA55
Type Designator: MPSA55
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.33 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO92
