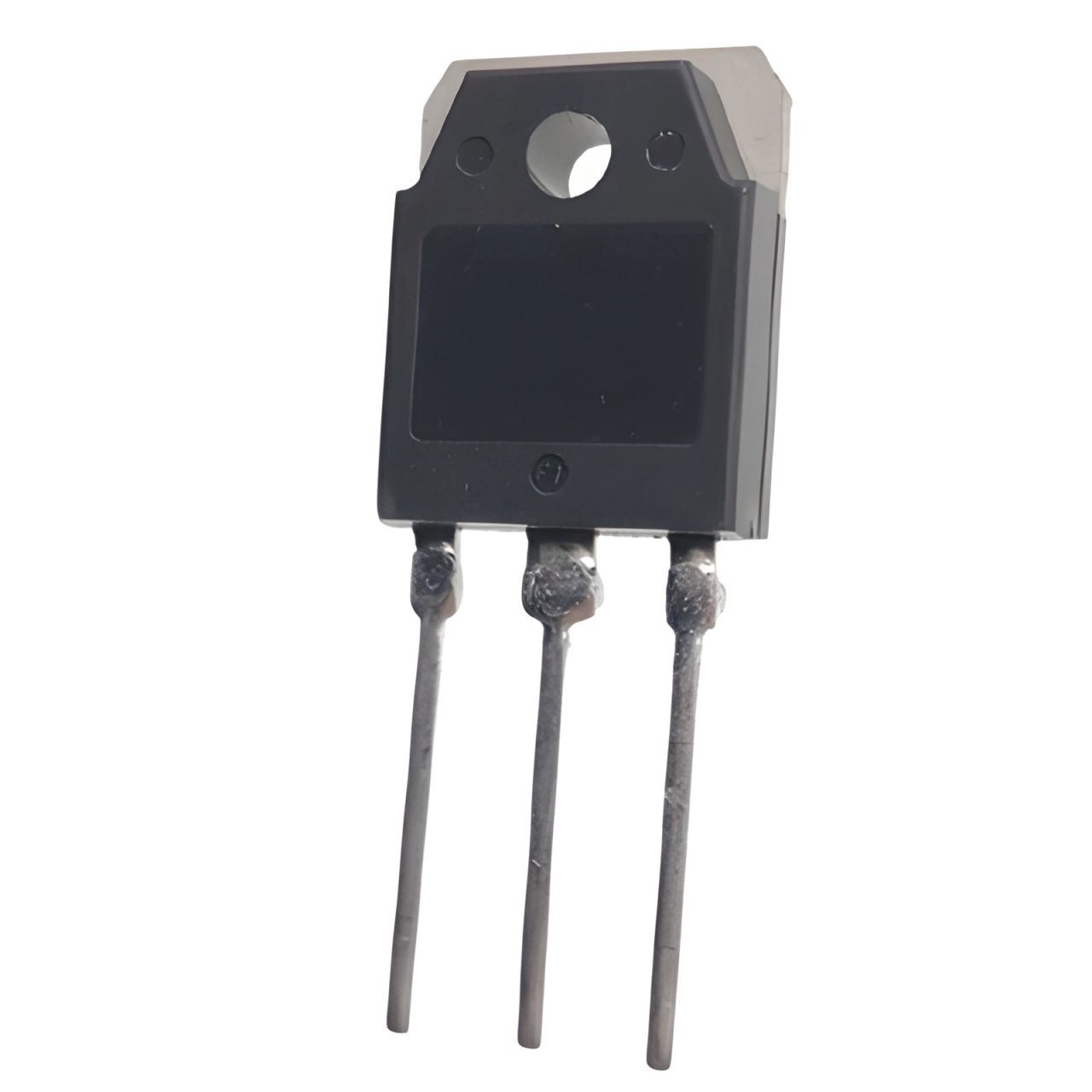

MN2488 TO-3P 10A 160V NPN BIPOLAR DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
48 Adet
Fiyat
4,10 USD + KDV
*15,79 TL den başlayan taksitlerle!
169,80 TL
MN2488 TO-3P 10A 160V NPN BIPOLAR DARLINGTON TRANSISTOR
MN2488
Type Designator: MN2488
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 55 MHz
Collector Capacitance (Cc): 95 pF
Forward Current Transfer Ratio (hFE), MIN: 5000
Package: LF100
