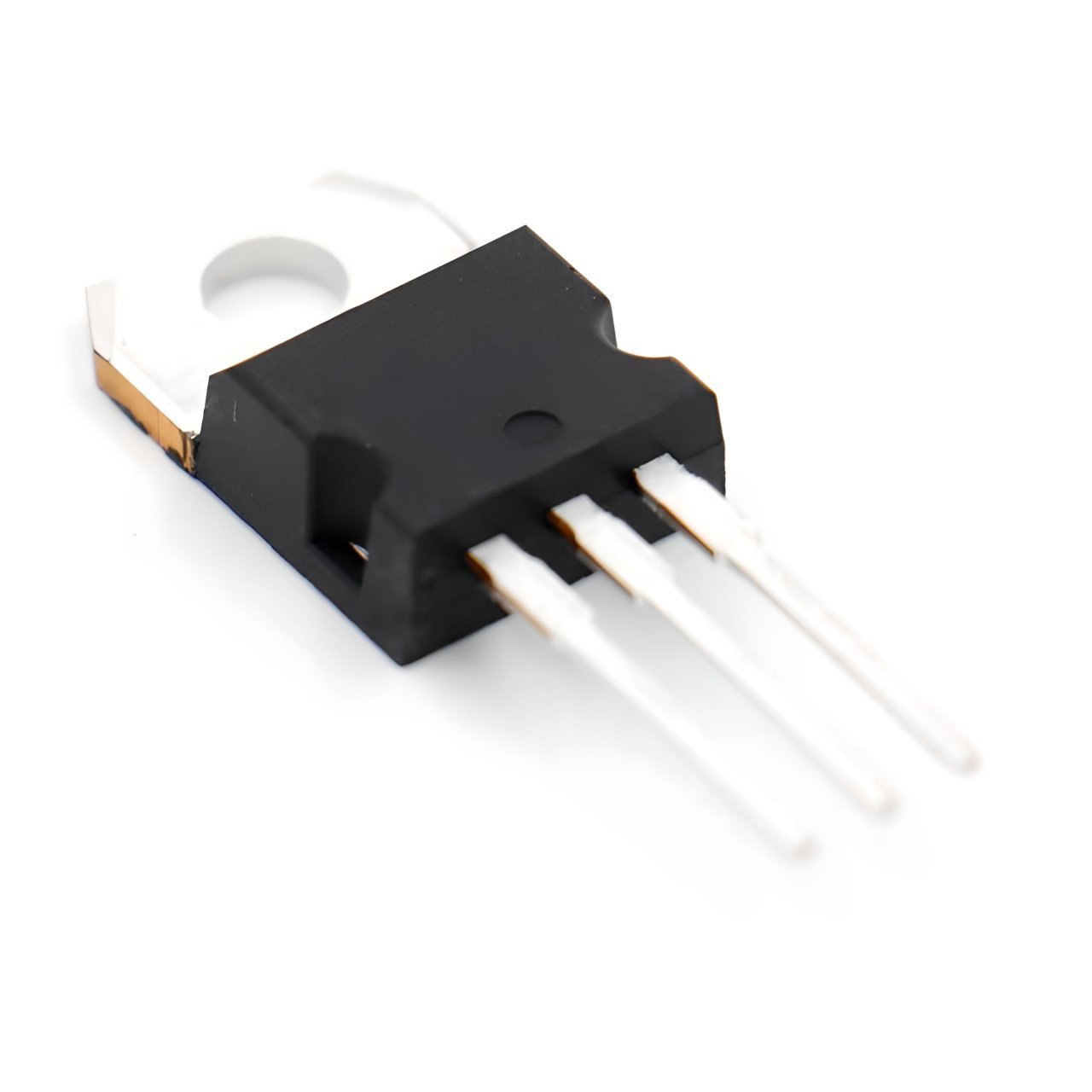

MJE3055T TO-220 10A 70V 75W 2MHz NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
980 Adet
Fiyat
0,45 USD + KDV
*1,73 TL den başlayan taksitlerle!
18,64 TL
MJE3055T TO-220 10A 70V 75W 2MHz NPN TRANSISTOR
MJE3055T
Type Designator: MJE3055T
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 70 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO220
