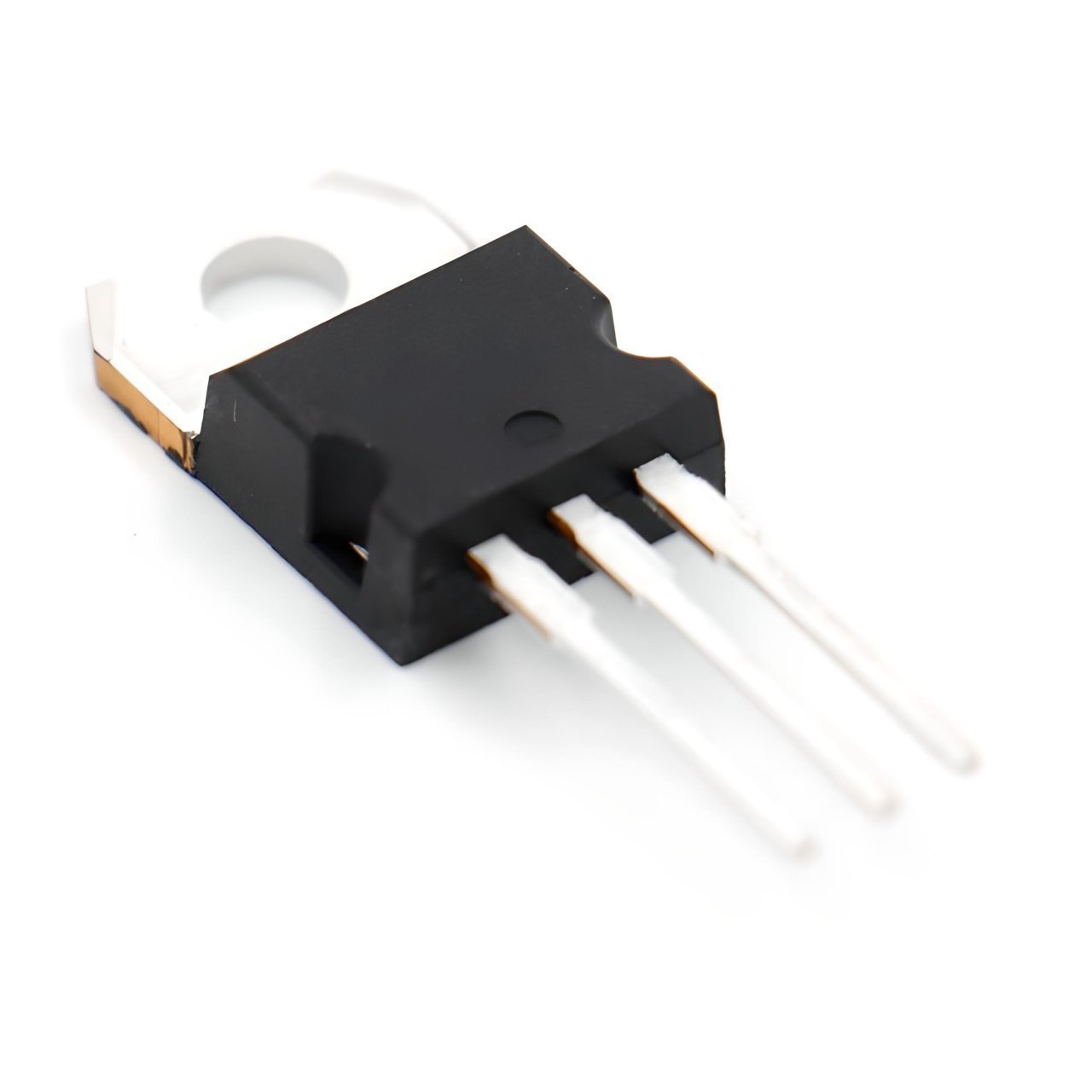

MJE2955T TO-220 10A 70V PNP TRANSISTOR
MJE2955T
Type Designator: MJE2955T
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 70 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO220
