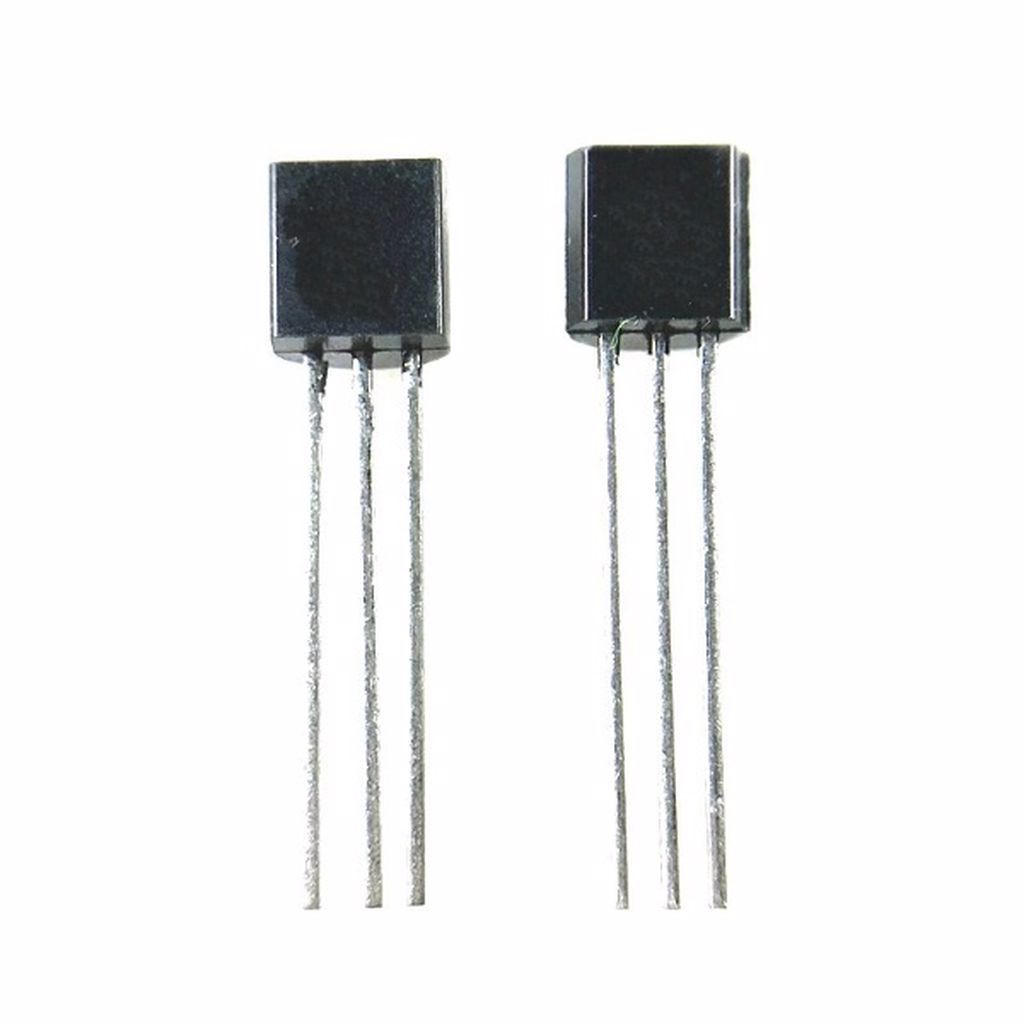

MJE13003 TO-92 1.5A 400V NPN BIPOLAR TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
103 Adet
Fiyat
0,28 USD + KDV
*1,08 TL den başlayan taksitlerle!
11,60 TL
MJE13003 TO-92 1.5A 400V NPN BIPOLAR TRANSISTOR
MJE13003
Type Designator: MJE13003
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 700 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 21 pF
Forward Current Transfer Ratio (hFE), MIN: 8
Package: TO126
