MJD31C TO-252 3A 100V 15W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
0,43 USD + KDV
*1,66 TL den başlayan taksitlerle!
17,81 TL
MJD31C TO-252 3A 100V 15W NPN TRANSISTOR
MJD31C
Type Designator: MJD31C-1
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 15 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25

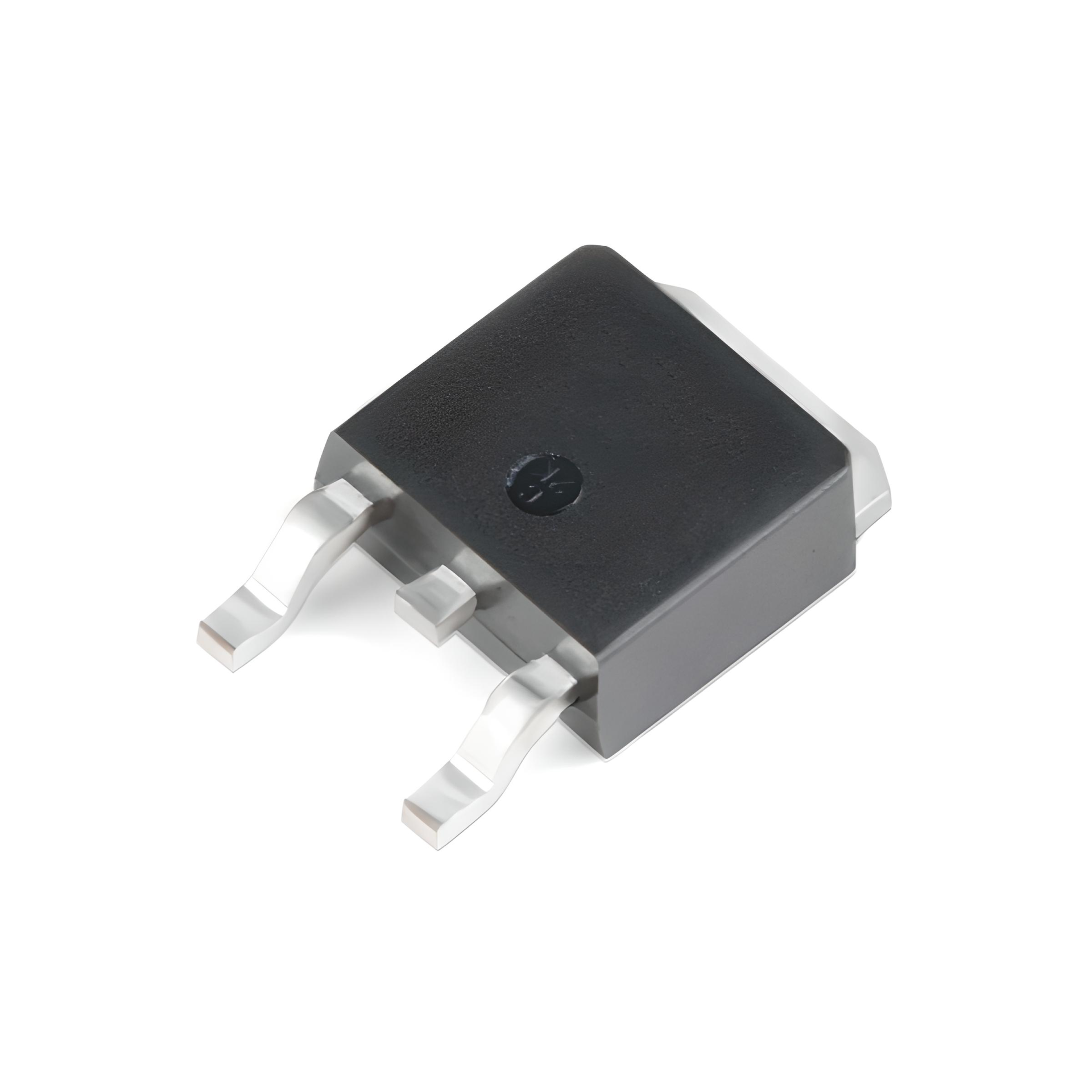

Package: TO252
