MJ3001 TO-3 10A 80V NPN DARLINGTON TRANSISTOR
MJ3001
Type Designator: MJ3001
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 200 °C
Forward Current Transfer Ratio (hFE), MIN: 2000

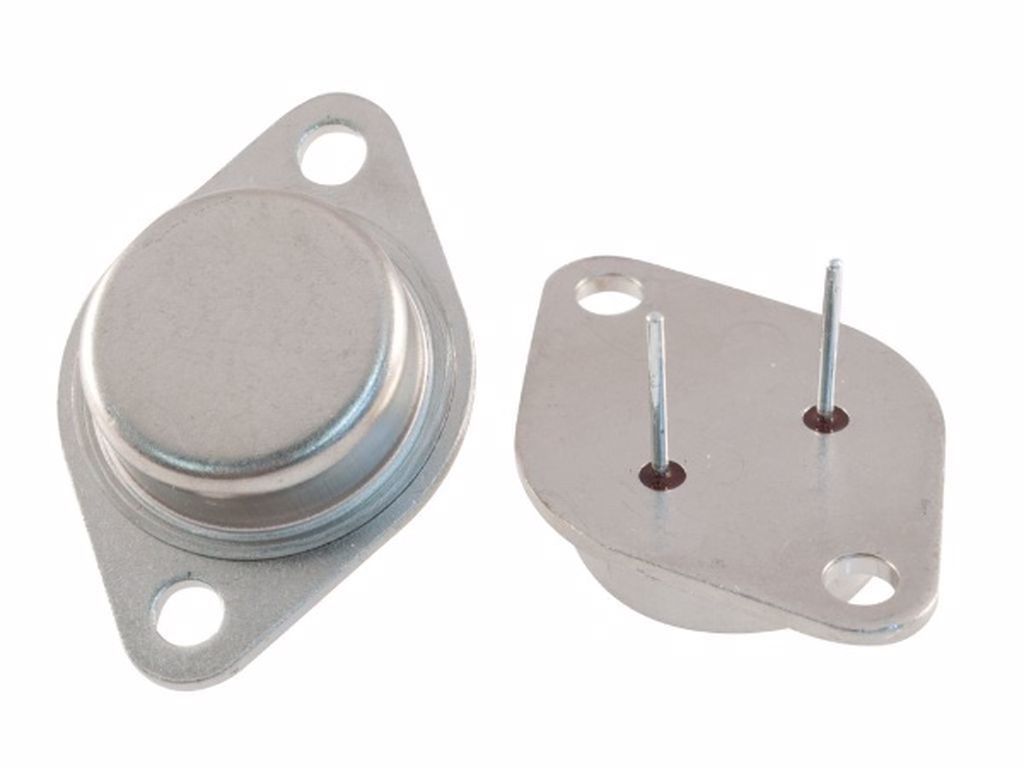

Package: TO3
