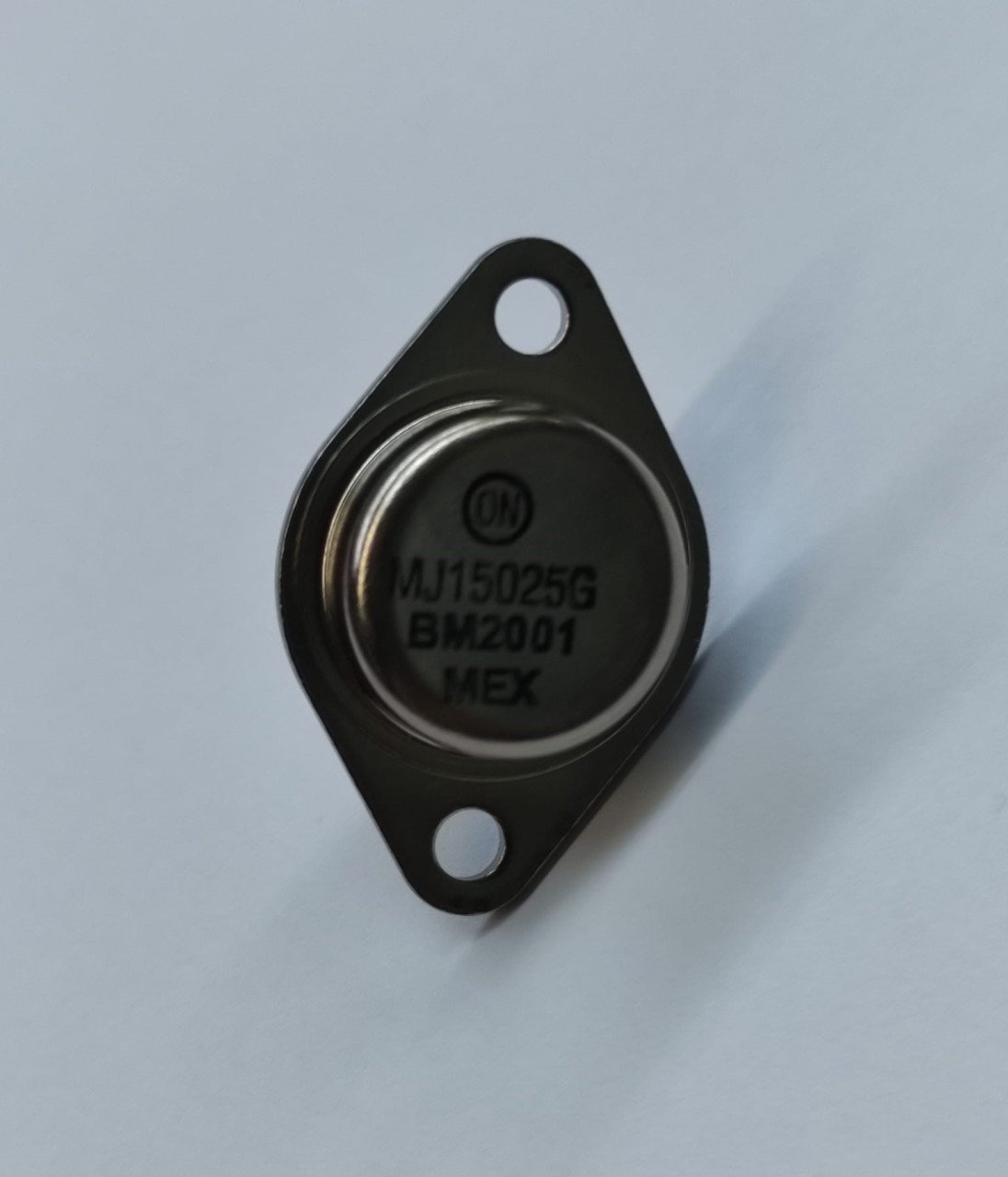

MJ15025G TO-3 16A 250V TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
10,00 USD + KDV
*38,50 TL den başlayan taksitlerle!
414,14 TL
MJ15025G
Type Designator: MJ15025G
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 250 W
Maximum Collector-Base Voltage |Vcb|: 400 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 16 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 600 pF
Forward Current Transfer Ratio (hFE), MIN: 15
Package: TO3
Bu ürüne ilk yorumu siz yapın!
