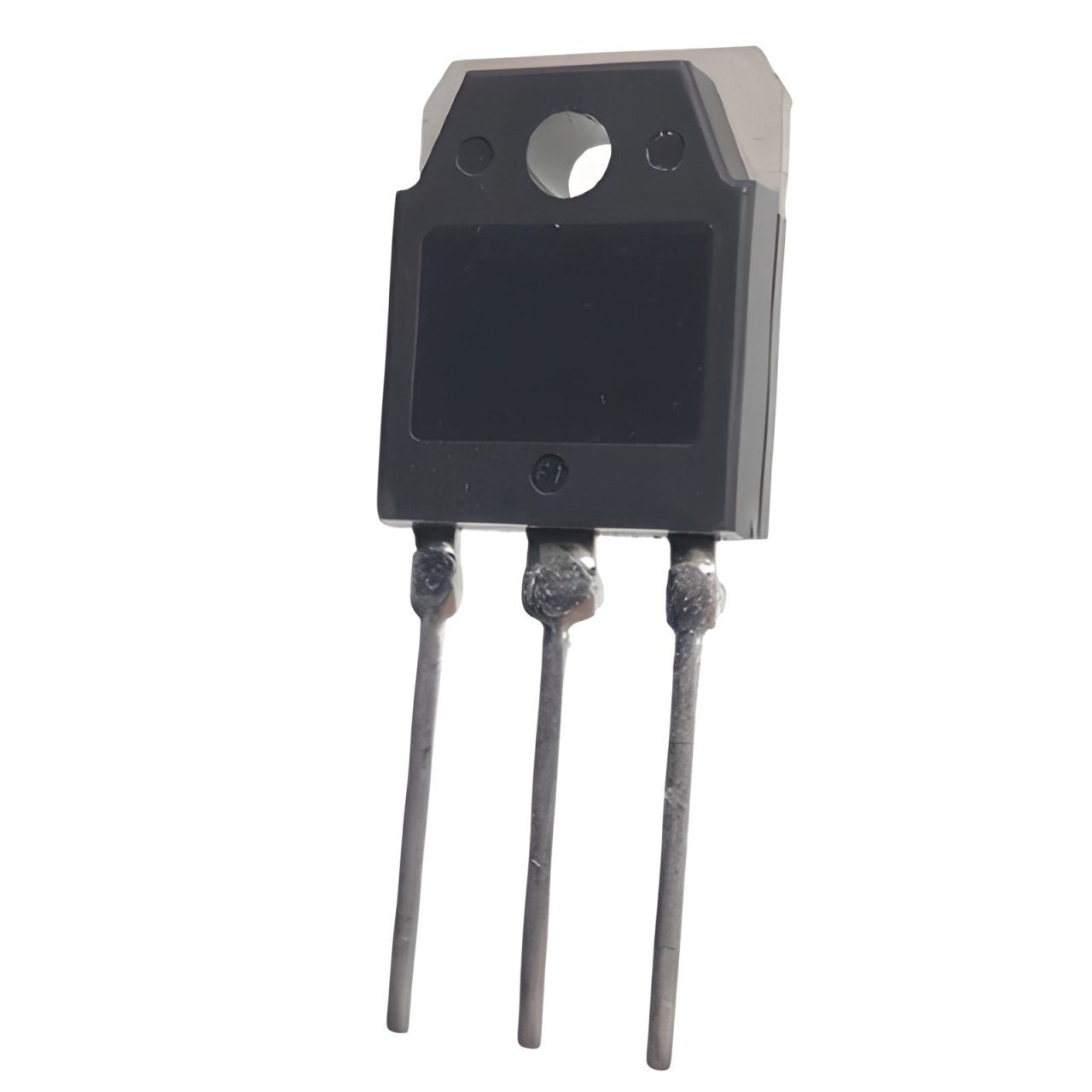

MGD623N TO-3P 50A 600V 150W IGBT TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
10,50 USD + KDV
*40,27 TL den başlayan taksitlerle!
433,11 TL
MGD623N TO-3P 50A 600V 150W IGBT TRANSISTOR
MGD623N IGBT
Type Designator: MGD623N
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 150
Maximum Collector-Emitter Voltage |Vce|, V: 600
Collector-Emitter saturation Voltage |Vcesat|, V: 1.7
Maximum Gate-Emitter Voltage |Veg|, V: 30
Maximum Collector Current |Ic|, A: 50
Maximum Junction Temperature (Tj), °C: 150
Rise Time, nS: 100
Maximum Collector Capacity (Cc), pF: 150pf
Package: TO3P
