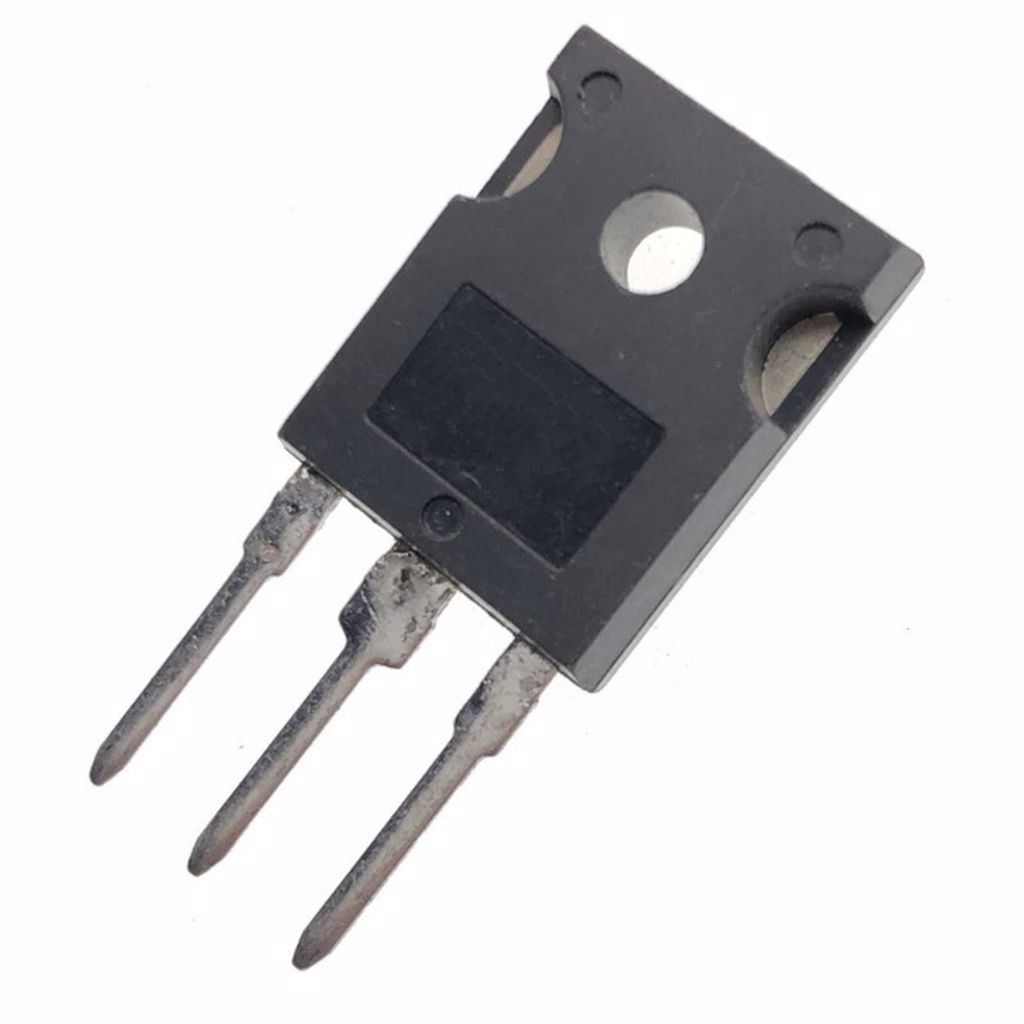

MBQ40T65FDSC TO-247 80A 650V 375W IGBT TRANSISTOR
0 - Yorum
203,76 TL
MBQ40T65FDSC TO-247 80A 650V 375W IGBT TRANSISTOR
MBQ40T65FDSC IGBT
Type Designator: MBQ40T65FDSC
Marking Code: 40T65FDSC
Type of IGBT Channel: N
Maximum Power Dissipation (Pc), W: 375
Maximum Collector-Emitter Voltage |Vce|, V: 650
Collector-Emitter saturation Voltage |Vcesat|, V: 1.95
Maximum Gate-Emitter Voltage |Veg|, V: 20
Maximum Collector Current |Ic|, A: 80
Maximum Junction Temperature (Tj), °C: 175
Rise Time, nS: 54
Maximum Collector Capacity (Cc), pF: 209
Package: TO247
