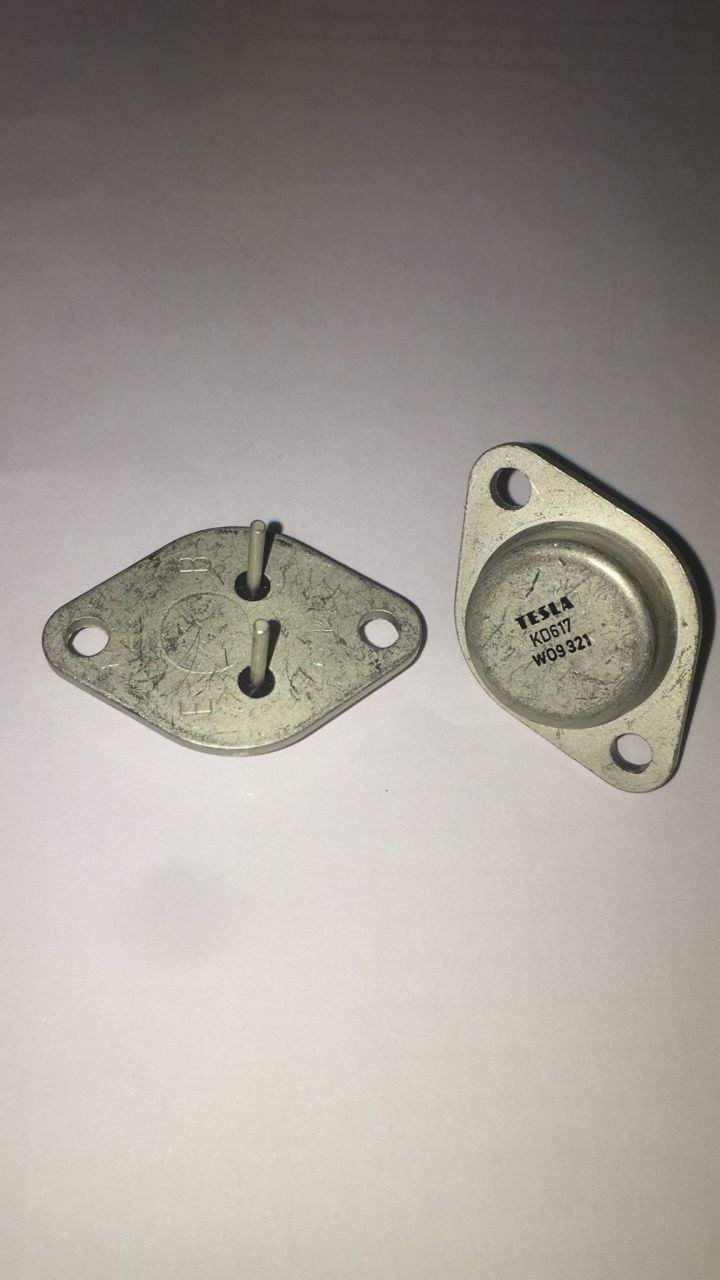

KD617 TO-3 80V 10A PNP TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
5,00 USD + KDV
*19,25 TL den başlayan taksitlerle!
207,07 TL
KD617
Type Designator: KD617
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 70 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO3
