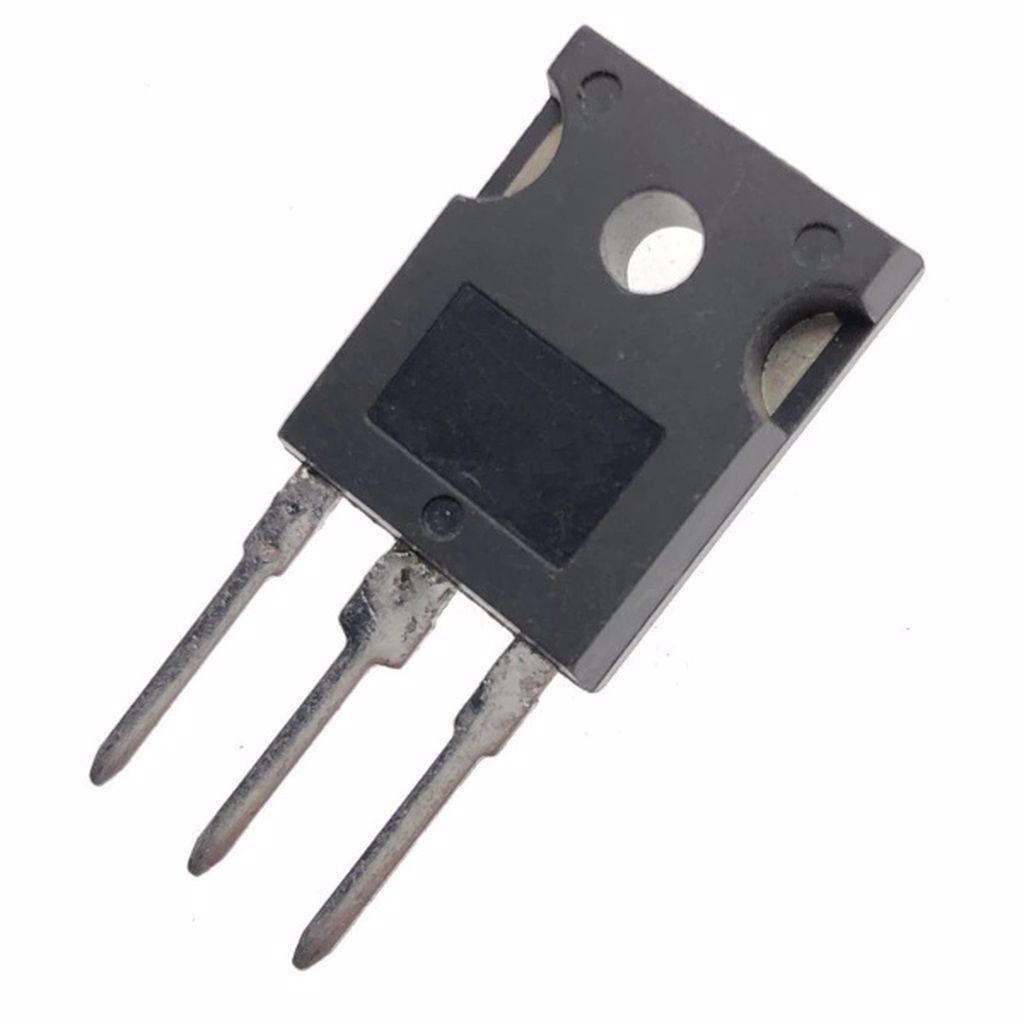

IXSH20N60AU1 TO-247 40A 600V 150W IGBT TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
50 Adet
Fiyat
6,20 USD + KDV
*23,79 TL den başlayan taksitlerle!
255,90 TL
IXSH20N60AU1 TO-247 40A 600V 150W IGBT TRANSISTOR
IXSH20N60AU1 IGBT
Type Designator: IXSH20N60AU1
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 150
Maximum Collector-Emitter Voltage |Vce|, V: 600
Collector-Emitter saturation Voltage |Vcesat|, V: 3
Maximum Gate-Emitter Voltage |Veg|, V: 20
Maximum Collector Current |Ic|, A: 40
Maximum Junction Temperature (Tj), °C: 150
Rise Time, nS: 100
Maximum Collector Capacity (Cc), pF: 1800pF
Package: TO247
