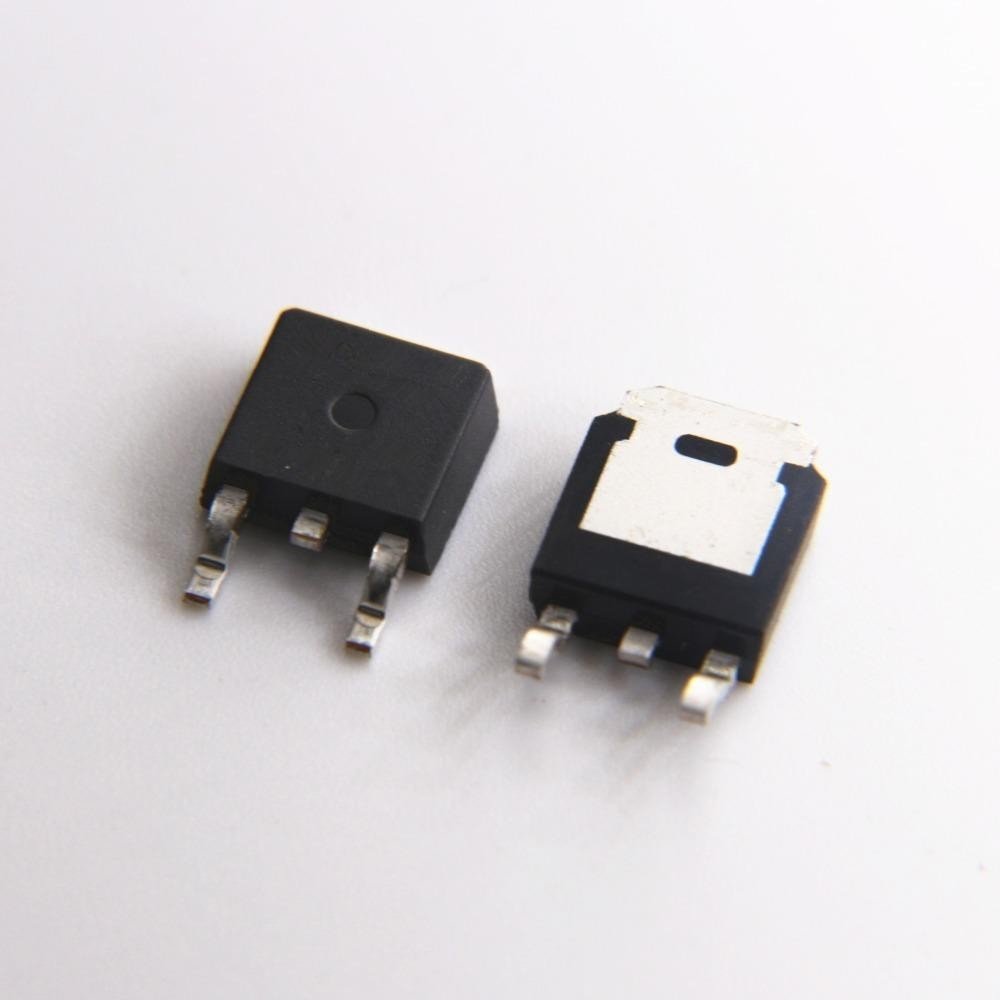

IRLR7807Z TO-252 30V 43A MOSFET
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
1,50 USD + KDV
*5,78 TL den başlayan taksitlerle!
62,12 TL
IRLR7807Z
Type Designator: IRLR7807Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 40 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.25 V
Maximum Drain Current |Id|: 43 A
Maximum Junction Temperature (Tj): 175 °C
Maximum Drain-Source On-State Resistance (Rds): 0.0138 Ohm
Package: DPAK
