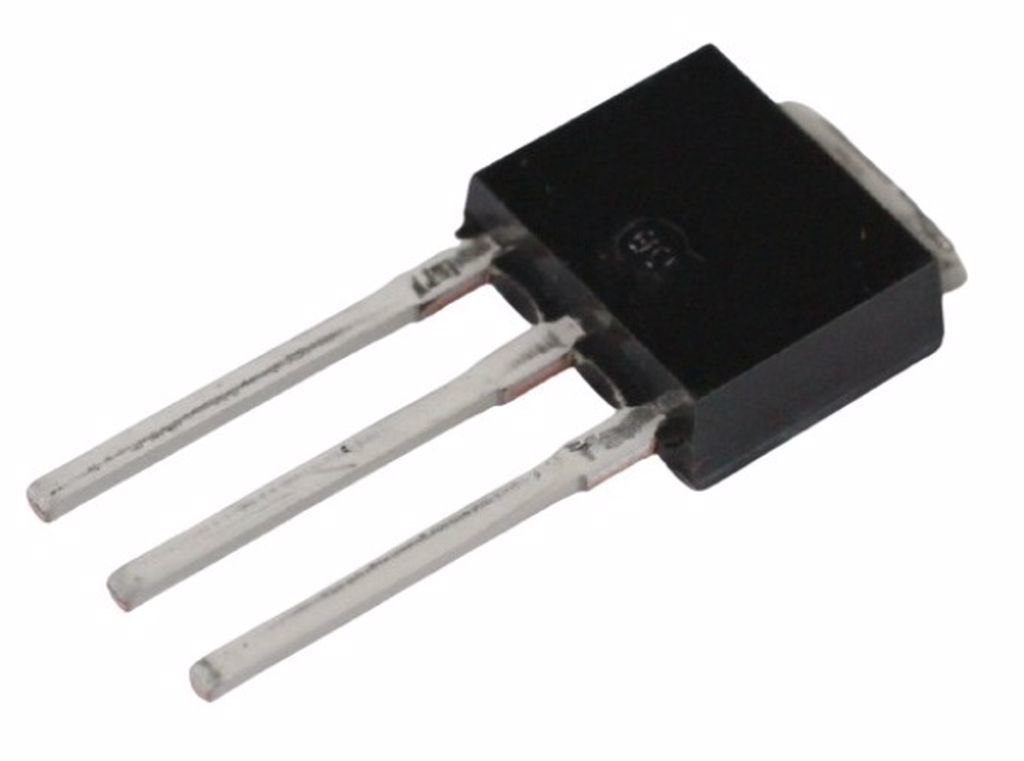

IRFU9024NPBF TO-251 55V 11A 175mOHM P-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
106 Adet
Fiyat
1,35 USD + KDV
*5,27 TL den başlayan taksitlerle!
56,68 TL
IRFU9024N TO-251 55V 11A P-CHANNEL MOSFET
IRFU9024NPBF MOSFET
Type Designator: IRFU9024NPBF
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 38 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 19 nC
Rise Time (tr): 55 nS
Drain-Source Capacitance (Cd): 170 pF
Maximum Drain-Source On-State Resistance (Rds): 0.175 Ohm
Package: TO-251
