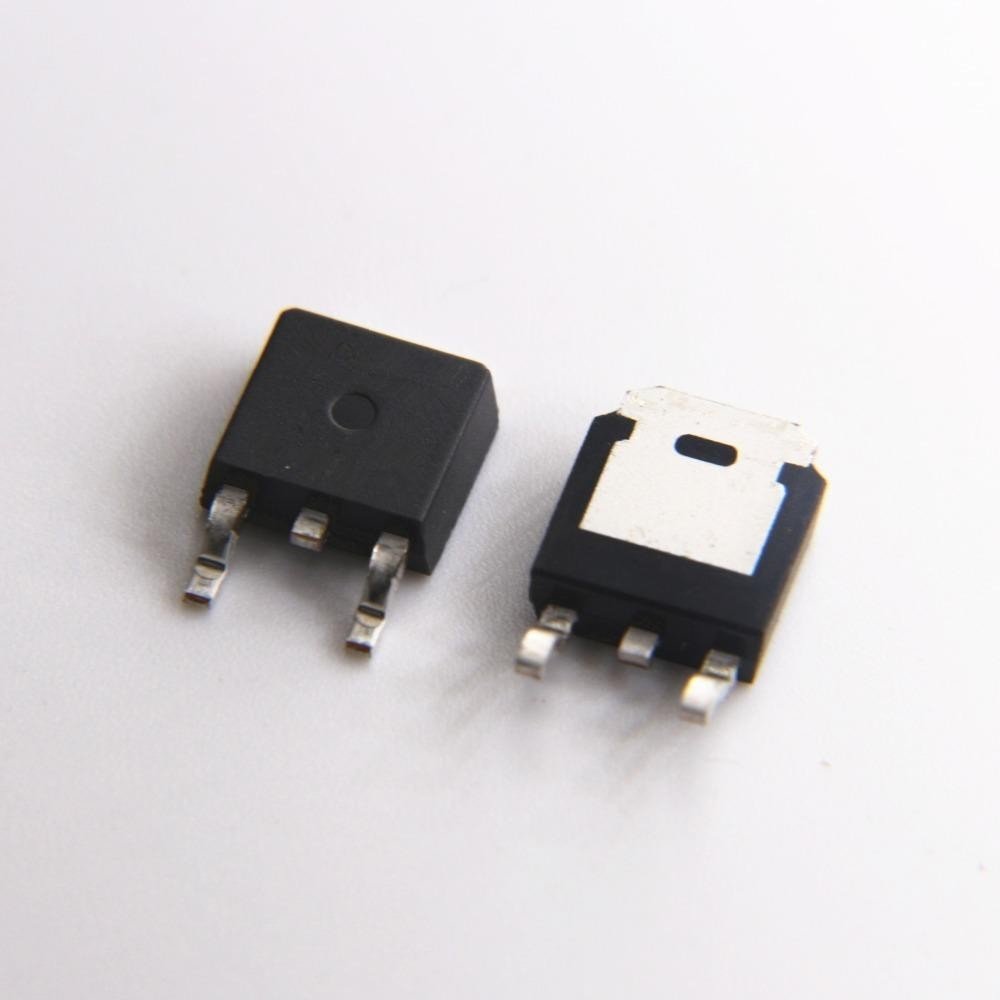

IRFR540Z TO-252 100V 35A MOSFET
0 - Yorum
Kategori
Kalan Adet
17 Adet
Fiyat
1,20 USD + KDV
*4,62 TL den başlayan taksitlerle!
49,70 TL
IRFR540Z
Type Designator: IRFR540Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 91 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 35 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 39 nC
Maximum Drain-Source On-State Resistance (Rds): 0.0285 Ohm
Package: DPAK
Bu ürüne ilk yorumu siz yapın!
