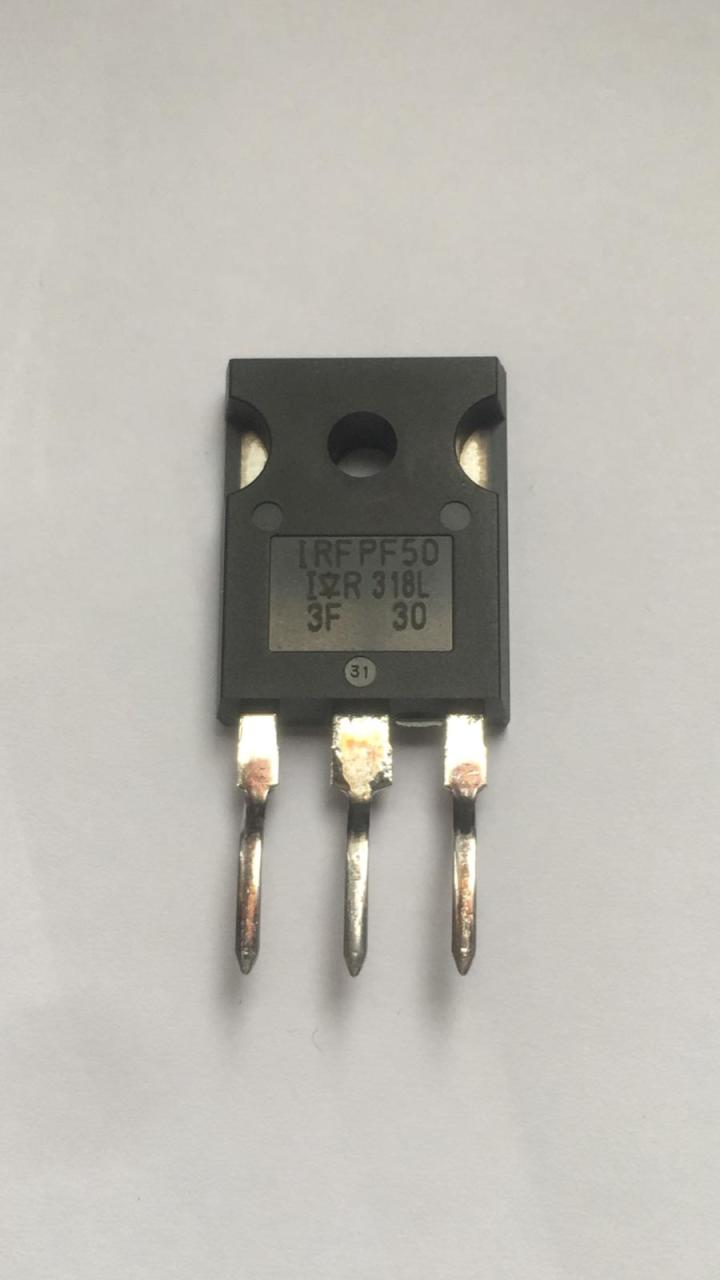

IRFPF50PBF TO-247 6.7A 900V N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
50 Adet
Fiyat
6,20 USD + KDV
*23,87 TL den başlayan taksitlerle!
256,77 TL
IRFPF50
Type Designator: IRFPF50
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 190 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 6.7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 200(max) nC
Rise Time (tr): 34 nS
Drain-Source Capacitance (Cd): 270 pF
Maximum Drain-Source On-State Resistance (Rds): 1.6 Ohm
Package: TO247AC
Bu ürüne ilk yorumu siz yapın!
