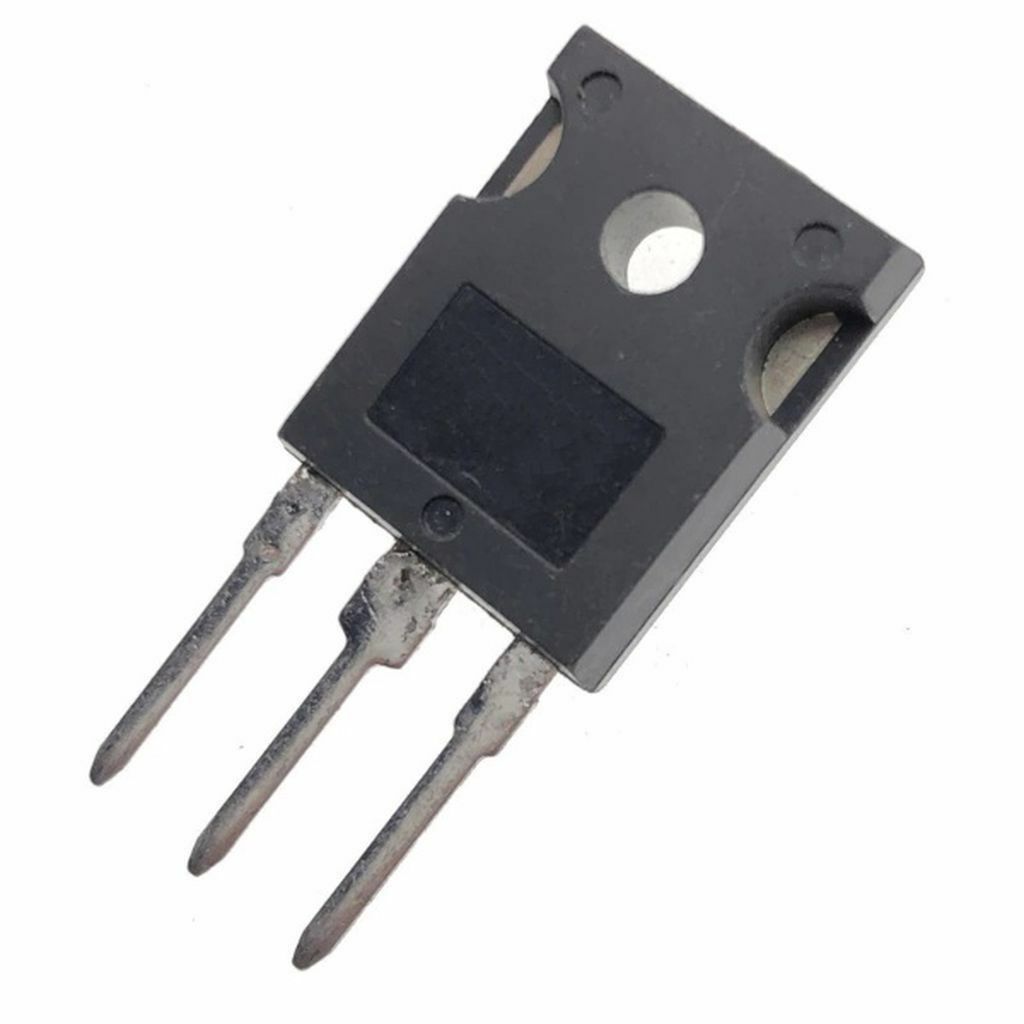

IRFPE50PBF TO-247 7.8A 800V 190W 1.2Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
32 Adet
Fiyat
7,50 USD + KDV
*28,88 TL den başlayan taksitlerle!
310,60 TL
IRFPE50PBF
Type Designator: IRFPE50PBF
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 190 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 7.8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 200 nC
Rise Time (tr): 38 nS
Drain-Source Capacitance (Cd): 800 pF
Maximum Drain-Source On-State Resistance (Rds): 1.2 Ohm
Package: TO-247AC
