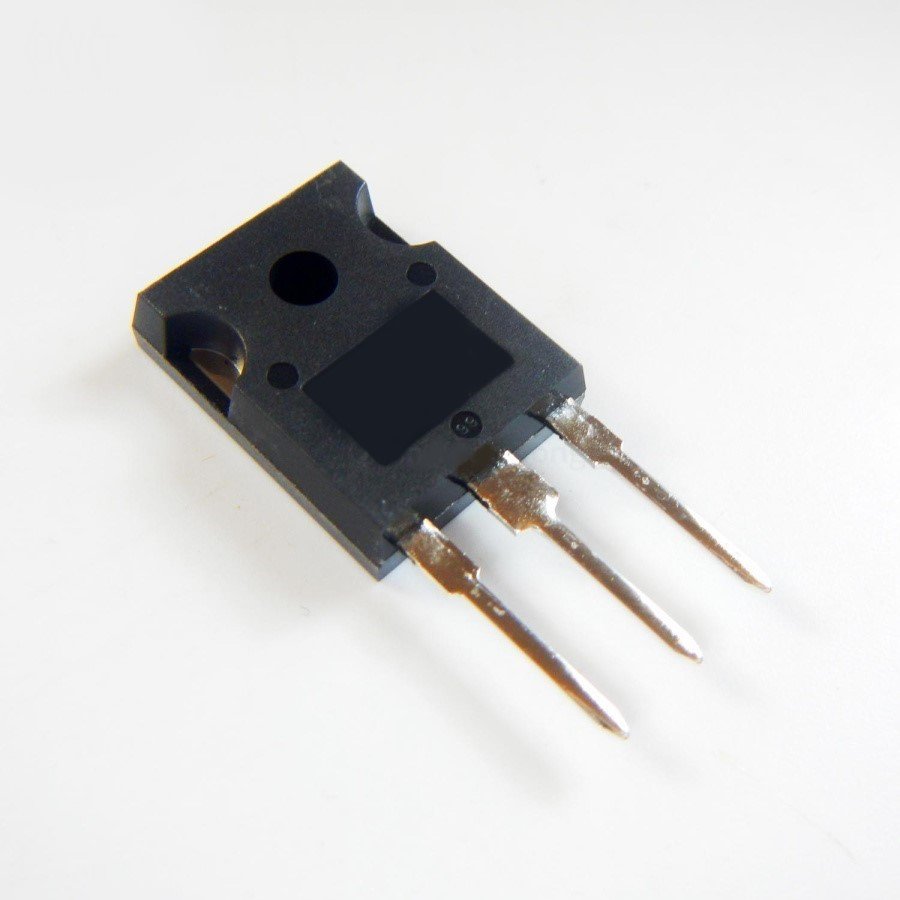

IRFPC40 TO-247 600V 6.8A MOSFET
0 - Yorum
Kategori
Kalan Adet
20 Adet
Fiyat
1,45 USD + KDV
*5,58 TL den başlayan taksitlerle!
60,05 TL
IRFPC40
Type Designator: IRFPC40
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 6.8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 40 nC
Rise Time (tr): 18 nS
Drain-Source Capacitance (Cd): 160 pF
Maximum Drain-Source On-State Resistance (Rds): 1.2 Ohm
Package: TO247AC
