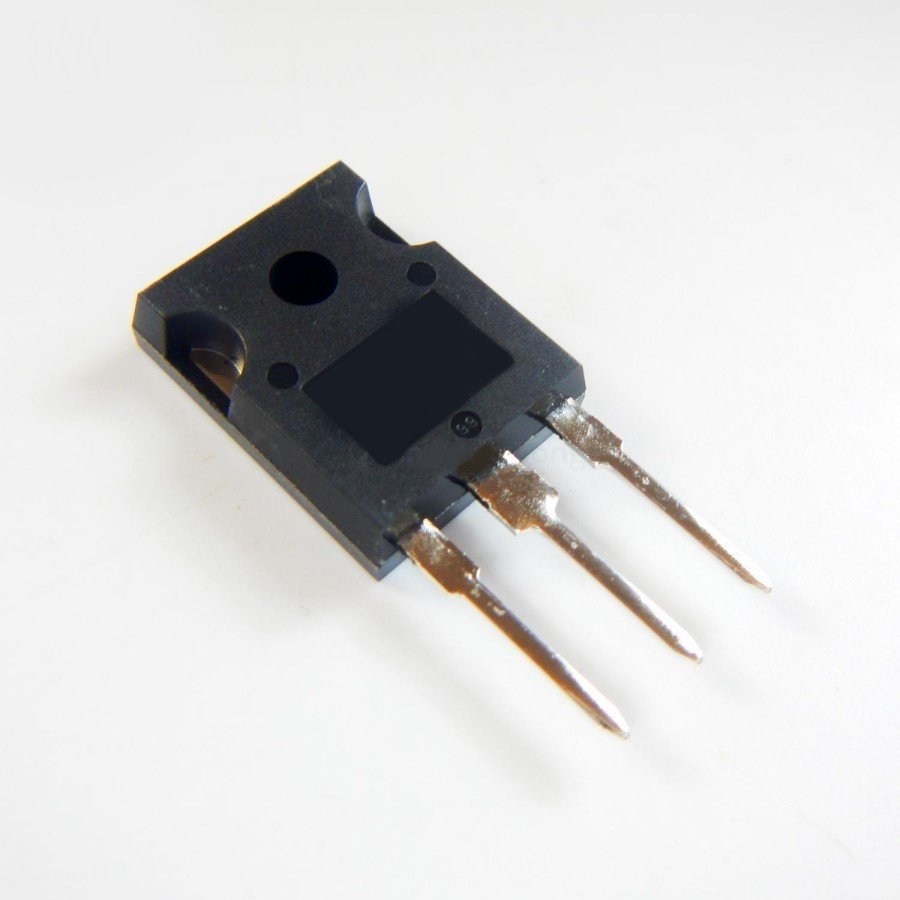

IRFP044N TO-247 57A 60V MOSFET
0 - Yorum
Kategori
Kalan Adet
30 Adet
Fiyat
3,75 USD + KDV
*14,44 TL den başlayan taksitlerle!
155,30 TL
IRFP044
Type Designator: IRFP044
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 180 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 57 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 95(max) nC
Rise Time (tr): 120 nS
Drain-Source Capacitance (Cd): 1200 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: TO247AC
Bu ürüne ilk yorumu siz yapın!
