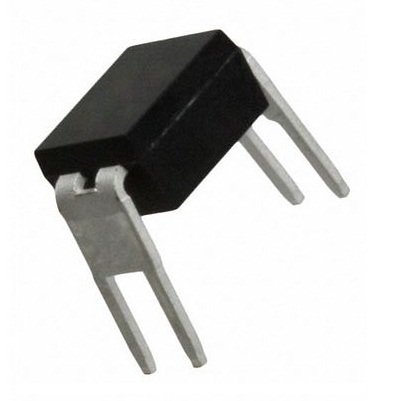

IRFD9220 200V 0.56A HVMDIP MOSFET
0 - Yorum
Kategori
Kalan Adet
100 Adet
Fiyat
0,85 USD + KDV
*3,27 TL den başlayan taksitlerle!
35,20 TL
IRFD9220 MOSFET
Type Designator: IRFD9220
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 0.56 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm
