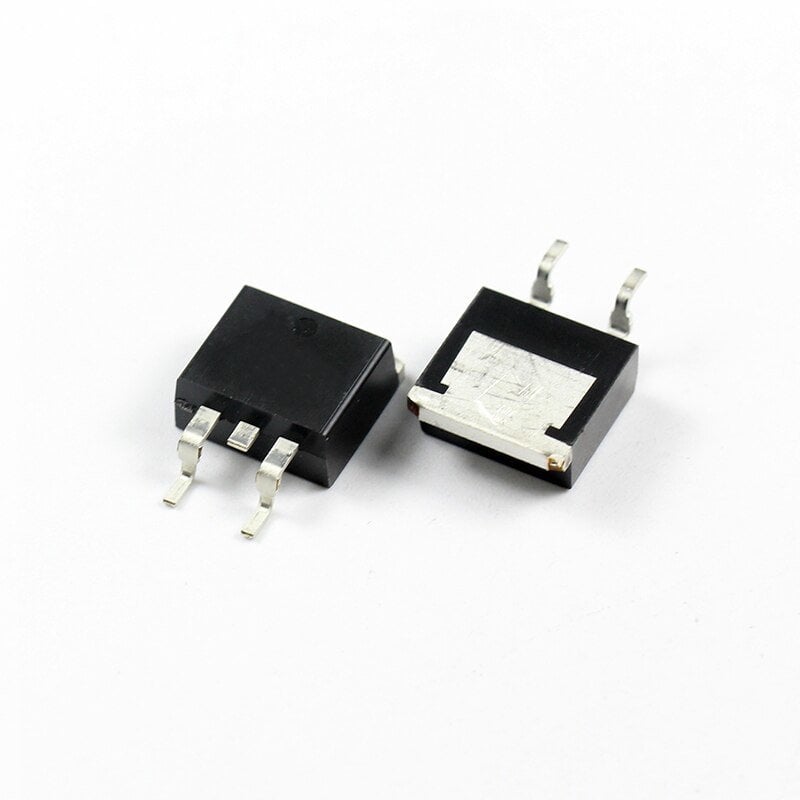

IRF740S TO-263 10A 400V N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
2,65 USD + KDV
*10,20 TL den başlayan taksitlerle!
109,75 TL
IRF740S
Type Designator: IRF740S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 400 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 63 nC
Maximum Drain-Source On-State Resistance (Rds): 0.55 Ohm
Package: D2PAK
