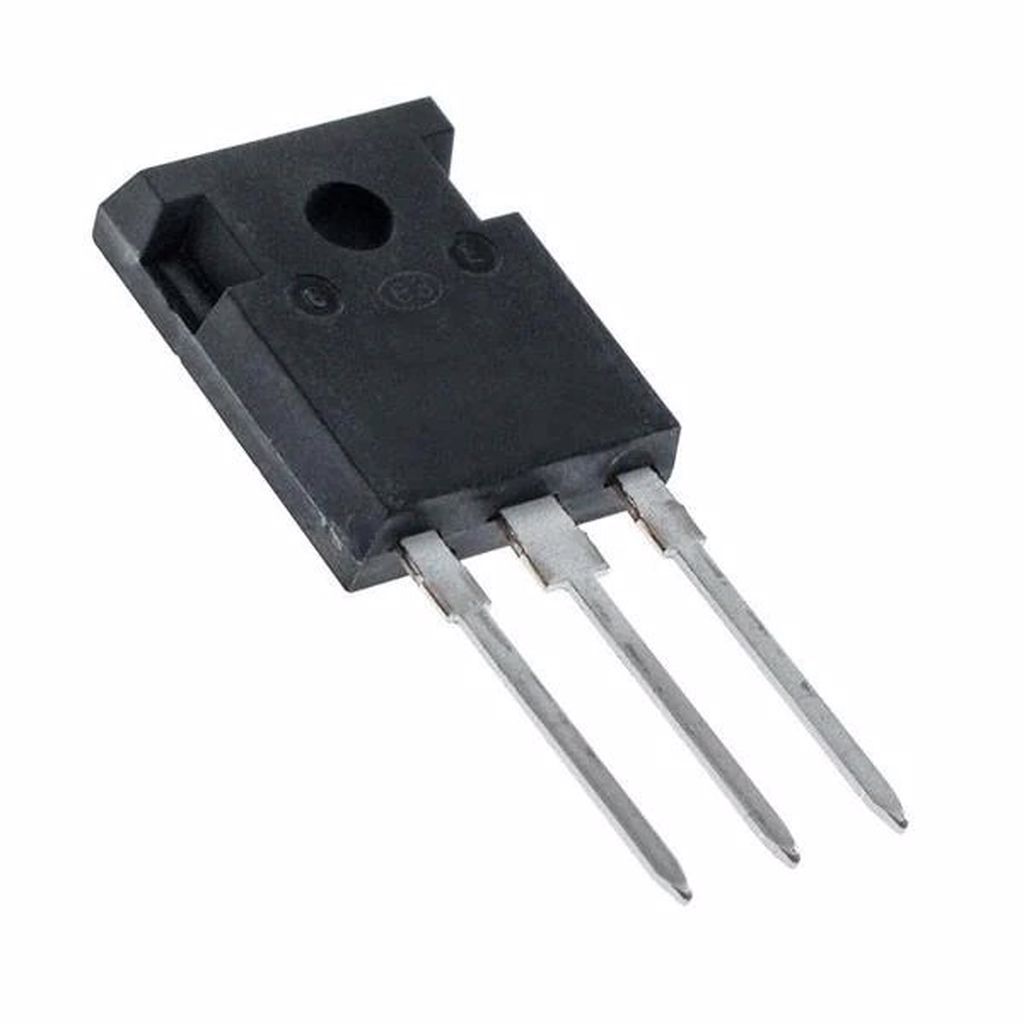

IKW40N65H5 - (K40EH5) TO-247 74A 650V 255W IGBT TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
8 Adet
Fiyat
14,50 USD + KDV
*55,64 TL den başlayan taksitlerle!
598,47 TL
IKW40N65H5A
Type Designator: IKW40N65H5A
Marking Code: K40EH5A
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 250
Maximum Collector-Emitter Voltage |Vce|, V: 650
Collector-Emitter saturation Voltage |Vcesat|, V: 1.66
Maximum Gate-Emitter Voltage |Veg|, V: 20
Maximum Collector Current |Ic|, A: 74
Maximum Junction Temperature (Tj), °C: 175
Rise Time, nS: 11
Maximum Collector Capacity (Cc), pF: 43
Package: TO247
