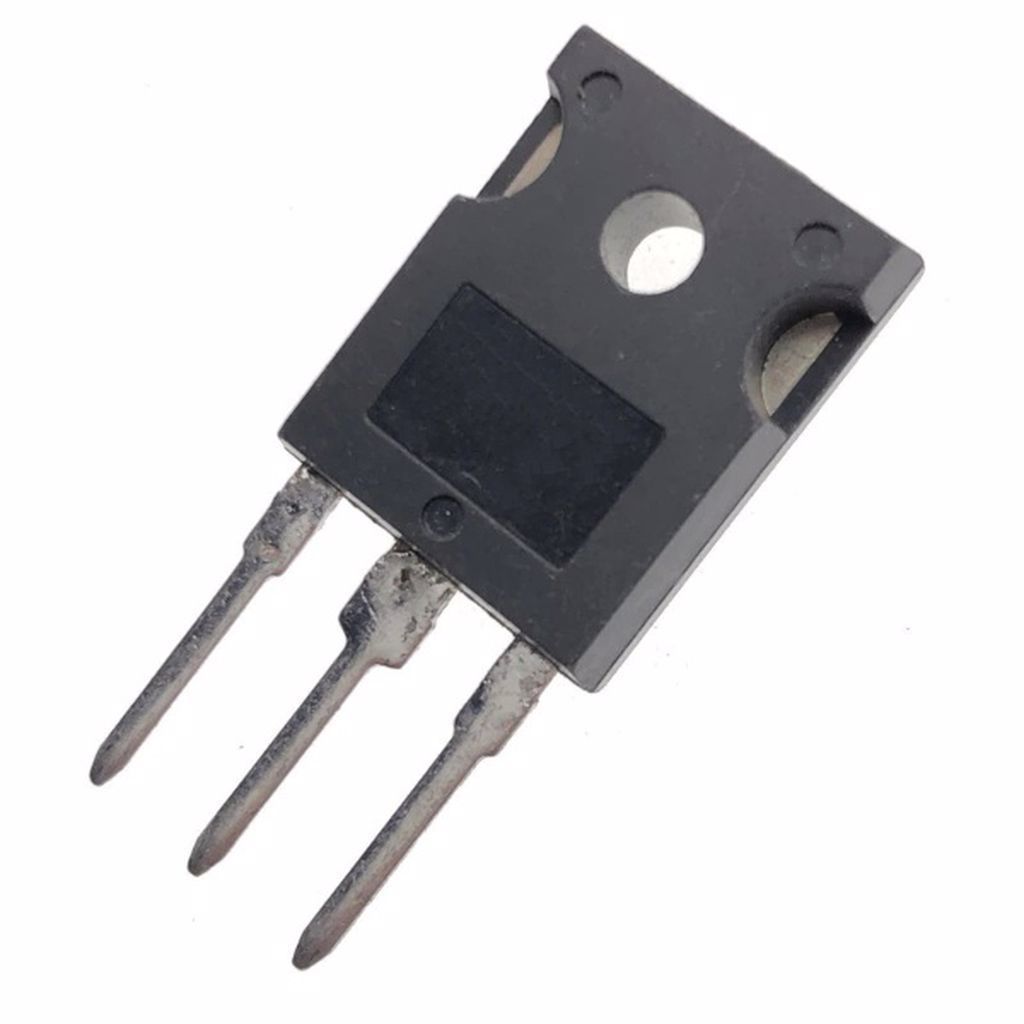

HY3215W TO-247 130A 150V 349W 0.014Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
120 Adet
Fiyat
4,15 USD + KDV
*15,81 TL den başlayan taksitlerle!
170,03 TL
HY3215W TO-247 130A 150V 349W 0.014Ω N-CHANNEL MOSFET
HY3215W MOSFET
Type Designator: HY3215W
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 349 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 130 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 135 nC
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 480 pF
Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm
Package: TO247
