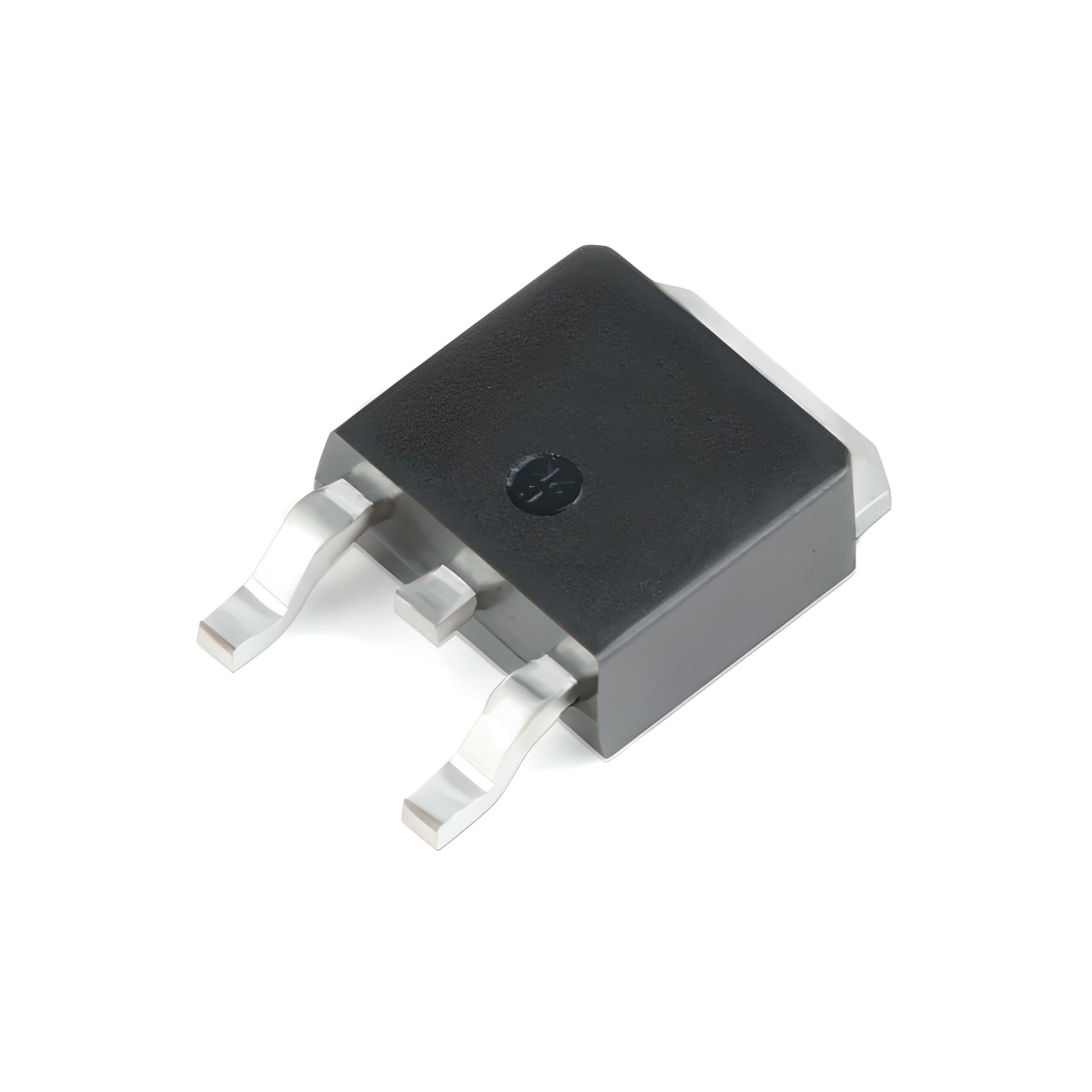

HM25P06K TO-252 25A-60V P-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
1,45 USD + KDV
*5,79 TL den başlayan taksitlerle!
62,27 TL
Type Designator: HM25P06K
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Pdⓘ - Maximum Power Dissipation: 38.5 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 3 V
|Id|ⓘ - Maximum Drain Current: 25 A
Tjⓘ - Maximum Junction Temperature: 150 °C
Qgⓘ - Total Gate Charge: 26 nC
trⓘ - Rise Time: 9 nS
Cossⓘ - Output Capacitance: 130 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.06 Ohm
Package: TO252
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Pdⓘ - Maximum Power Dissipation: 38.5 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 3 V
|Id|ⓘ - Maximum Drain Current: 25 A
Tjⓘ - Maximum Junction Temperature: 150 °C
Qgⓘ - Total Gate Charge: 26 nC
trⓘ - Rise Time: 9 nS
Cossⓘ - Output Capacitance: 130 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.06 Ohm
Package: TO252
