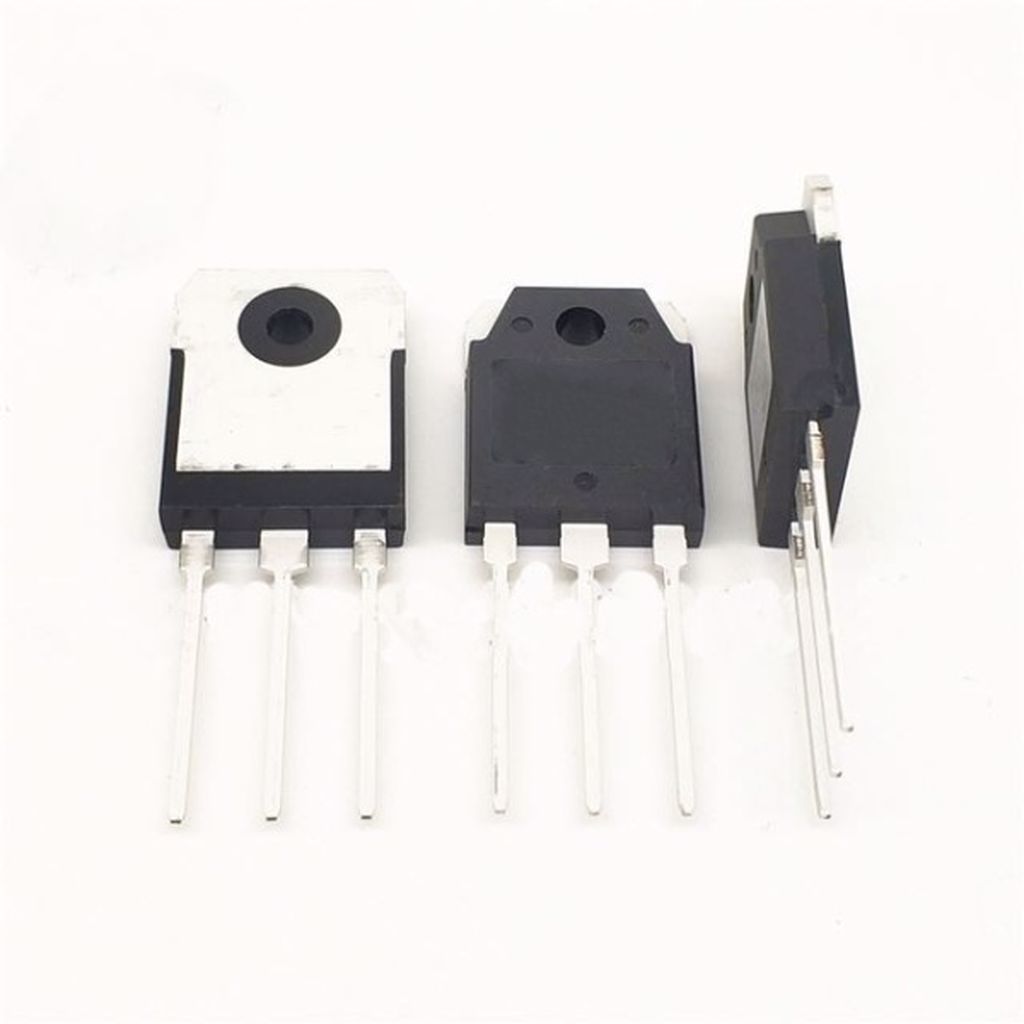

FSW25N50A TO-3P 500V 25A N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
290 Adet
Fiyat
3,90 USD + KDV
*15,02 TL den başlayan taksitlerle!
161,51 TL
FSW25N50A
Type Designator: FSW25N50A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 230 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 25 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 117 nS
Drain-Source Capacitance (Cd): 410 pF
Maximum Drain-Source On-State Resistance (Rds): 0.26 Ohm
Package: TO3PN
Bu ürüne ilk yorumu siz yapın!
